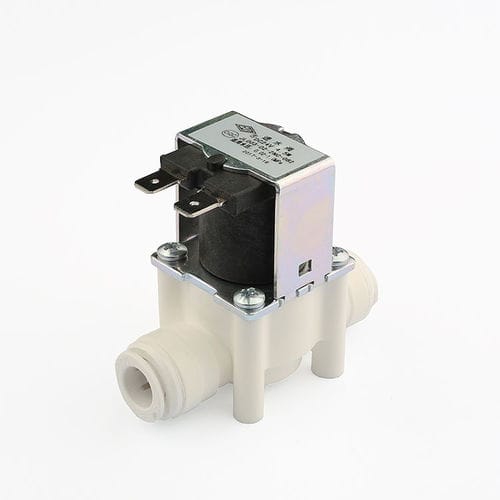

2-way solenoid valve JL003 series
normally closedfor waterplastic

2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic
2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic
2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic - image - 2
2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic - image - 3
2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic - image - 4
2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic - image - 5
2-way solenoid valve - JL003 series - Shanghai Yongxing Electronic Switch Co.,Ltd - normally closed / for water / plastic - image - 6
Add to favorites
Compare this product

Characteristics

Ports/positions
2-way
Function
normally closed
Medium
for water
Body
plastic
Other characteristics
RoHS
Voltage

12 V, 24 V, 110 V

Max.: 240 V

Min.: 220 V

Temperature

Max.: 55 °C
(131 °F)

Min.: -25 °C
(-13 °F)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.2 bar
(2.9 psi)

Description

Name：JL003 24v pilot type 2 way water inlet solenoid valve Product Type： JL003-D2-2NC-082 USE： Water purifier , Boiler , Washing machine , Bidet Principle： Pilot type Rating voltage： 12VDC,24VDC,110VAC/50HZ,220-240VAC/50Hz Type： Normal close Medium： Liquid water , Underground water Pressure range：0.02-0.8Mpa (0.2-8bar) / 0.02-1.0Mpa (0.2-10bar) Customizable Ambient temp： -25~55℃ Max.medium temp： 90℃ Certificate： CQC、ROHS
