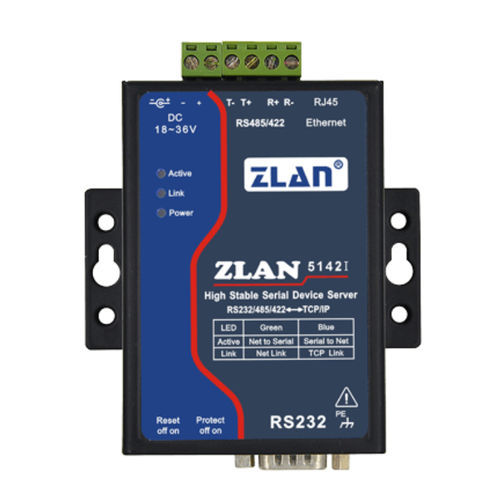

Serial device server ZLAN5142I

serial device server
serial device server
serial device server
serial device server
serial device server
Add to favorites
Compare this product


Output bus
Ethernet, Modbus
Other characteristics


ZLAN5142I is a high reliability and high performance serial device server and Modbus Gateway product designed by Shanghai ZLAN special for lightning resistance, anti-electromagnetic interference and resisting bad environment requirements, is the flagship product on serial device server. Can be applied to industrial application requiring anti-jamming, anti-tunnel monitoring, wind power, field geological disasters monitoring and so on. ZLAN5142I has good interface isolation characteristic. The RS485/422 not only have ±15V antistatic, but also have 2500V interface isolation, as adding 2500V AC voltage between RS485 wire and shell, the current leakage into ZLAN5143 is less than 5 mA. The RS485 of ZLAN5142I can drive 256 load capacity, compared to the product driving 32 loads, it can achieve the ability of monitoring more equipment to save cost.ZLAN5142I has three interface types: RS232/485/422. The input voltage can provide DC Q2. 1 jack or terminal type, the input voltage is 18~36V (can be customized 12V). It can be equipped with guide installation accessories. Features Interface insolation: the power can reach 3KV insolation voltage; RS485/422 can reach 2.5KV insolation voltage; ±15KV ESD protection function; More than 25KV/US high common mode transient suppression. RS485/422 has the ability of 256 loads. Three interface types: RS232/485/422. RS422 needs customized internal jumpers, should be informed before buying. Support 18~24V power supply, interface are DC Q2. 1 jack and terminal wiring. Can be customized 12V power input. Having both functions: serial device server with transparent transmission and Modus gateway.
