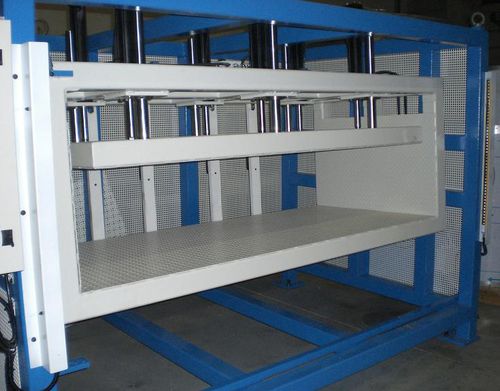

Machine to permit the tilting of plate packages on pallets.
Automatic system to overturn stacks through 180° up to a height of 600mm.
Opportunity to load/unload on the same side by means of fork trucks.
Single machine to be inserted out of the line.
Max dimenions of plate packages: 2200 x 900 mm.
Max height of pallet + plate packages + pallet: 600 mm.
Min height of pallet + plate packages + pallet: 200 mm.
Max weight of plate packages: 1500 kg.
Rotation with gearbox.
Time rotation: 18 sec.
