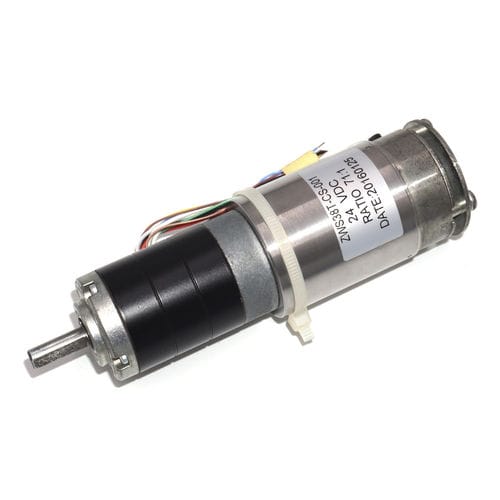

DC motor ZWS38T-CS-001brushless24 Vwith brake
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V
- Configuration
- with brake
- Torque
1.8 Nm
(1.3276 ft.lb)- Rotational speed
89 rpm
(559.2 rad.min-1)
Description
Model: - ZWS38T-CS-001
No Load Current: - 0.6A Max
No Load Speed: - 100 rpm ± 10%
Rated Voltage: - 24 VDC
Rated Current: - 0.25A Max
Rated Speed: - 89 rpm ± 3
Rated Torque: - 1.8N.m
Direction of Rotation: - CCW
Noise: - 55 dBA Max
Gear Ratio: - 19:1, 25:1, 46:1, 71:1, 79:1, 93:1, 130:1, 195:1
Application: - VIP Seat of Aircraft Cabin, VIP Seat of High Speed Train
