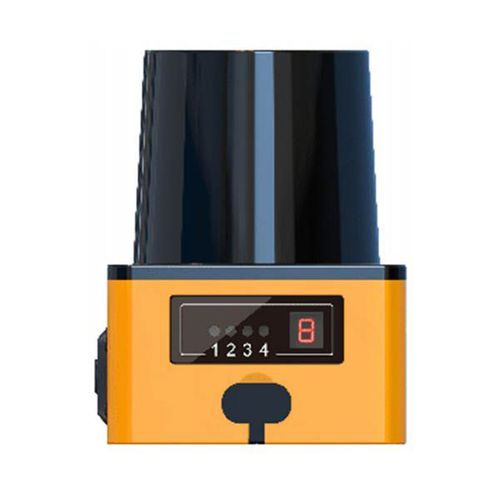

3D scanner LGA10

measurementlaserfor production lines

Accurate realistic target restoration ±30mm detection precision; 62mm * 62mm*83mm (max) compact size; Customized multi-angle view for different requirement; Detecting distance can reach 20m;0.18° minimum angular; Strong recognition ability even low reflectivity. Parameter of laser scanner • Detection distance • 0.1-8m (reflectivity 20%) • 0.1-20m (relfectivity 90%) • Detection range : 270° • Scanning principle • Pulse TOF • Laser level • Level 1 ( IEC60825-1:2014, EN60825-1:2014) • Wave length : 905nm • Sampling rate : 20KHz • Scanning frequency : 10Hz, 20Hz can be set • Horizontal angular • resolution • 0.18° • Response time : 100ms • Accuracy • ±30mm • Startup time : 8s • Channel : 15 (each channel includes 3 detection areas) • Operating current (DC24V) : ≤100ma (signal output not by IO) : • Switching input : 4 : • Switching output : 4 (2 for NPN area warning signals, 1 pair for NPN OSSD safety output signal) NPN or PNP output : • Protection rate : IP65 : • Anti-optical interference : 100000 Lux • Weight : 171g • Dimension (max) : • 62mm * 62mm *79mm • Sine vibration frequency • 10 Hz-1000Hz, acceleration 5g, 10 time each at X, Y,Z • Randon vibration frequency • 5Hz-250H, Gr.m.s=4.24g, 5 hours each at X,Y,Z direction • Impact resistance • 196/(20G) 3000 times each at X, Y and Z directions. • Electromagnetic • compatibility • EN IEC61000-6-2:2019; EN61000-6-4:2019 • Indicator : 4 (3 for area signal, 1 for faulty signal) • Communication interface : (USB or RS232 or RS485) & Ethernet • Power supply : DC9-28V
