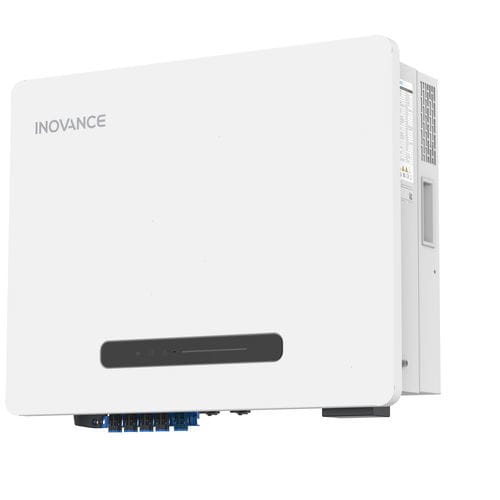

Parallel DC/AC inverter IES320 series

off-gridon-gridcurrent

The IES320 series hybrid inverter is used in energy storage for home and small-scale industry and business. The single-unit power is 12 kW, 15 kW, or 20 kW. It supports various modes, such as self-consumption, surplus electricity grid connection,off-grid power supply, and Time of Use (TOU). It allows off-grid connection with all types of loads. The efficient thermosiphon technology is applied to significantly improve the heat dissipation efficiency. The inverter has IP66 and C5 protection and stringent EMC design comparable to household appliances. Overview Flexible Application · Compatible with PV modules and cells of different specifications · Five devices connected in parallel for flexible expansion · Supports 100% three-phase unbalanced output in both on-grid and off-grid scenarios Enhanced Experience · Features ultra-thin structure and low noise with ther-malsiphon for high-efficient heat dissipation · Whole home backup power for linear, non-linear, and half-wave loads · Easy installation due to pre-manufactured connectors and sorted accessory package Maximizing Yields · 200% over-dimensioning on the DC side to maximize power generation · Advanced self-consumption, peak shaving, and TOU modes available · Power control accuracy lower than or equal to 100 W for accurate reverse current prevention Safe and Reliable · Meets rigorous EMC requirements to ensure strong anti-interference ability and low emission · Fast response time (<10 ms) for on-grid/off-grid switchover · Rated at IP66 and C5 to protect the product against humidity, heat, and salt spray
