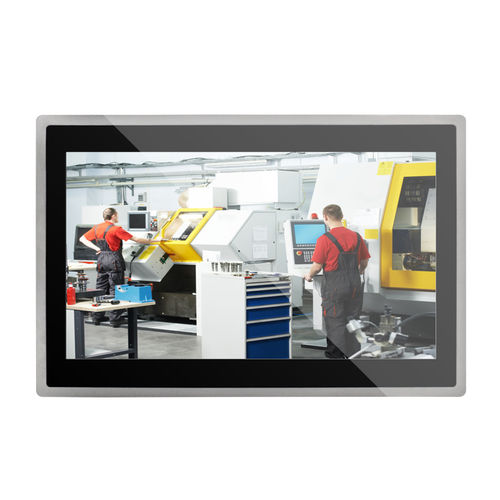

LCD panel PC ITD13PPCT5B-xxxx LED backlightPCAP capacitive touch screen5-wire resistive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, LED backlight, PCAP capacitive touch screen, 5-wire resistive touch screen
- Display size
- 13.3"
- Resolution
- 1920 x 1080
- Processor
- Intel® Celeron J1900, Intel® Celeron® J6412, x86, Intel® Celeron® J4125, Rockchip RK3399 SoC, ARM, 12th Generation Intel® Core™, Intel® Core i5, Intel® Core i7, 4th generation Intel® Core™, Intel® Core i3, 10th generation Intel® Core™, 9th Generation Intel® Core™, Intel Bay Trail, 6th generation Intel® Core™, 8th Generation Intel® Core™, 7th Generation Intel® Core™ i7, Rockchip RK3288 SoC, 11th Generation Intel® Core™
- Memory
- DDR5 SO-DIMM, RAM, DDR4 DRAM
- Operating system
- Linux, Android, Windows 10, Windows 7, Windows 8
- Mounting
- embedded
- Applications
- data acquisition, industrial, for IoT applications, for agricultural applications, for marine applications, for self-service information kiosk, for check-in kiosk, for the food industry, for the chemical industry, point-of-care, POS, for data acquisition systems, for medical applications, for the mining industry, for the pharmaceutical industry, for hazardous areas, railway, for clean rooms
- Protection level
- IP65, rugged, robust, NEMA 4
- Other characteristics
- SCADA
- Memory size
Min.: 4 GB
Max.: 64 GB
Description
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Excellent heat dissipation with aluminum heatsink, fan-less design
- All robust aluminum construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial HMI touch panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial HMI panel PCs come with industrial LCD flat screen sizes, PCAP or resistive touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
