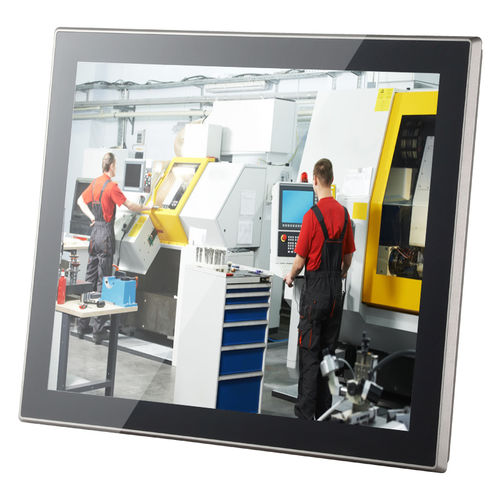

LCD panel PC ITD15PPCT5B-xxxx
touch screen15"1920 x 1080

LCD panel PC - ITD15PPCT5B-xxxx - Shenzhen ITD Display Equipment Co., LTD - touch screen / 15" / 1920 x 1080
LCD panel PC - ITD15PPCT5B-xxxx - Shenzhen ITD Display Equipment Co., LTD - touch screen / 15" / 1920 x 1080
LCD panel PC - ITD15PPCT5B-xxxx - Shenzhen ITD Display Equipment Co., LTD - touch screen / 15" / 1920 x 1080 - image - 2
LCD panel PC - ITD15PPCT5B-xxxx - Shenzhen ITD Display Equipment Co., LTD - touch screen / 15" / 1920 x 1080 - image - 3
Add to favorites
Compare this product
Go to the Shenzhen ITD Display Equipment Co., LTD website for more information

Characteristics

Screen type
LCD, touch screen
Display size
15"
Resolution
1920 x 1080, 1024 x 768
Processor
Intel® Celeron® J6412, Intel® Celeron J1900, x86, Intel® Celeron J1900, Intel® Celeron® J4125, Rockchip RK3588S, Rockchip RK3568, 9th Generation Intel® Core™, Rockchip RK3399 SoC, ARM, Intel® Core i5, 8th Generation Intel® Core™, Intel® Core i7, Rockchip RK3288 SoC, 12th Generation Intel® Core™, Intel® Core i3, 10th generation Intel® Core™, 7th Generation Intel® Core™ i7, 11th Generation Intel® Core™
Memory
DDR5 SO-DIMM, RAM, DDR4 DRAM, DDR3L SO-DIMM
Operating system
Windows
Construction
fanless, aluminum frame
Mounting
embedded
Applications
for data acquisition systems, industrial, for IoT applications, for the food industry, POS, for medical applications, for the chemical industry, data acquisition, for the mining industry, for check-in kiosk, for the pharmaceutical industry, for agricultural applications, for hazardous areas, for self-service information kiosk, for marine applications, railway, for clean rooms, point-of-care
Protection level
IP65, robust, NEMA 4
Other characteristics
HMI
Memory size

Max.: 64 GB

Min.: 4 GB

Description

15 inch Industrial HMI Touch Panel PC BENEFITES - Exceptional quality and highly engineered industrial panel computer - High Performance Processor, Graphics, Memory and Power - Edge to edge design with true flat surface, easy to clean - Excellent heat dissipation with aluminum heatsink, fan-less design - All robust aluminum construction designed for harsh and industrial environments - Easy-to-install embedded/panel mounting with clamps - Robust design with NEMA 4/ IP65 front panel - Flexible, reliable, and ruggedized for open platform HMI/SCADA - Long lasting product cycle for continuity thru all phases of project Screen Diagonal (Inch) - 15” Display Active Screen Size (cm) - 304.128(H)×228.096(V) Aspect Ratio - 4:3 Physical Resolution - 1024×768 Maximum Resolution Supported - 1920×1080 Colors - 16.7M Brightness (cd/m2) - 250nits Contrast Ratio - 700:1 View Angels - 80/80/60/80 Backlight/Backlight Lifetime - LED Backlight with 50000 Hours’ Lifetime
