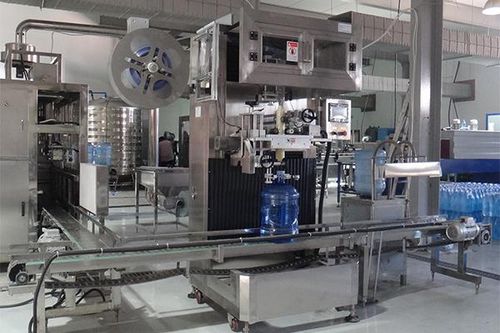

Automatic labeling machine JND-100N

for bottlespotshrink sleeve

Automatic Shrink Sleeve Labeling Machine (Bottle Neck Labeling) Applicable Bottle Types: Various kind of bottles, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped bottle, etc. The bottle material can be plastic, glass. Electrical Appliance Configuration Specification It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer. Besides, it adopts the positioning module to ensure casting label's accuracy, rapidity and stability. Features 1. It has a high-performance servo motor; 2. It is designed as small-type machine body. 3. It is featured by accurate casting label and stable operation without label missing or label blocking. 4. It adopts positioning rule and Bottle-pressing mechanism, which makes the position of the label more stable. Main technical standards: Model: JND-100N Production Capacity ( BPH ): 3000-9000 BPH Input Voltage: AC380/220V Input Power ( KW ): 20 Diameter of Bottle Body: Φ 28 mm-Φ 300mm Diameter of Bottle Neck: Φ 28 mm-Φ 100mm Length of Label: 30 mm ~ 55mm Thickness of Label: 0.03 mm ~0.13 mm Internal Diameter of Paper Tube: Optional among 5" ~10"
