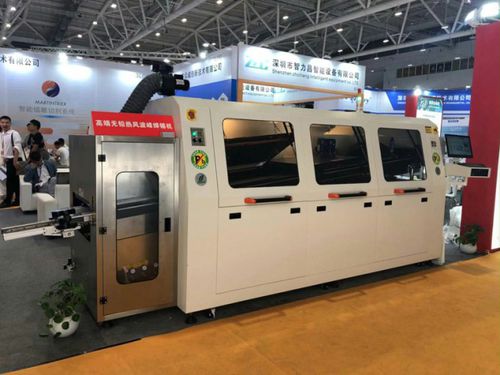

Wave soldering machine TOP-350
computer-controlledPLC-controlledmodular

wave soldering machine
wave soldering machine
Add to favorites
Compare this product


Characteristics

Technique
wave
Operating mode
computer-controlled, PLC-controlled
Other characteristics
modular
Power

Max.: 40,000 W

Min.: 10,000 W

Description

DIP lead free Wave Soldering Machine Name: TOP-350 Wave Solder mahine Model: TOP-350 Brief: TOP-350 Wave Solder mahine 1.01 The whole machine is controlled by Siemens PLC + Lenovo computer + temperature control module, which is stable and reliable 1.02 Powerful control software, running on Windows 7 system, can switch between Chinese and English at any time 1.03 Full computer control. Computer, UPS and controller constitute a stable system 1.04 Stepper motor spray mechanism, accurate movement, low noise, suitable and frequent action, long working life 1.05 Japanese lacquer nozzle, adjustable spray area and depth 1.06 Flux compulsory supply system to maintain constant pressure supply of flux 1.07 Complete flux recovery and exhaust filtration system, environmentally friendly 1.08 total length of four preheating zones 2000mm 1.09 Modular design of heater, easy maintenance 1.10 Molded arc tooth impeller, patented nozzle design, realize ultra-low oxidation 1.11 Tin furnace liner is made of cast iron enamel to effectively prevent corrosion of lead-free solder 1.12 Tinbo economic operation mode, less oxidation, energy saving 1.13 All titanium alloy chain claw, corrosion and high temperature resistance, never deform 1.14 Adjustable shock wave crest and precise flat wave width, save energy and reduce oxidation 1.15 Dual cooling zone design, adopting forced cooling method of upper and lower fans, optional forced water cooler 1.16 Equipped with new titanium alloy double hooks, aluminum alloy rail anti-deformation structure design 1.17 Manually adjust the width of the substrate; the conveying angle can be adjusted
