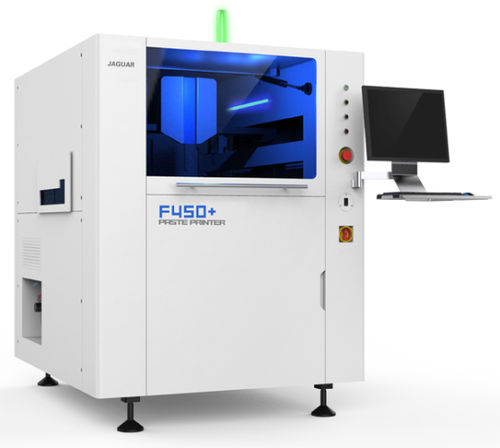

Automatic stencil printer F450

solder pasteSMTprogrammable

SMT Solder Paste Stencil Printer Name: F450 High Accuracy Automatic Stencil Printer Model: Jaguar F450 Brief: high accuracy printing machine designed for high precision screen printing or stencil printing in SMT PCB assembling. Product Features： a) Support spectrums of PCB sizes from 50mm x 50mm to 400mm x 340mm and PCB thickness from 0.8mm to 6mm. b) High printing accuracy 1. High positioning accuracy, repeated positioning accuracy ±0.008mm; printing accuracy ±0.015mm. 2. Support glue printing c) Automatic control improves production efficiency, quality control and cost saving: 1. Automatic stencil positioning 2. Automatic PCB calibration 3. Programmable squeegee pressure 4. Automatic printing 5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type) d) Adopt company independently developed suspended print head and Programmable pressure adjustment system. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste. e) Programmable motor controls separation speed and distance among the squeegee, stencil and substrates, to realize multi-method separation. f) Multi-functional PCB fixed positioning system, convenient and accurate PCB positioning. g) Upward and downward visual positioning. h) Built-in image processing system i) Support 2D, SPC functions Applicable pitches of Components a) SMT Components such as resistors, capacitors, inductors, diode and triode: 010035, 0201, 0402, 0603, 0805, 1206 and other specifications.
