Hybrid connector

circularscrew-lockedM16

Product Summary

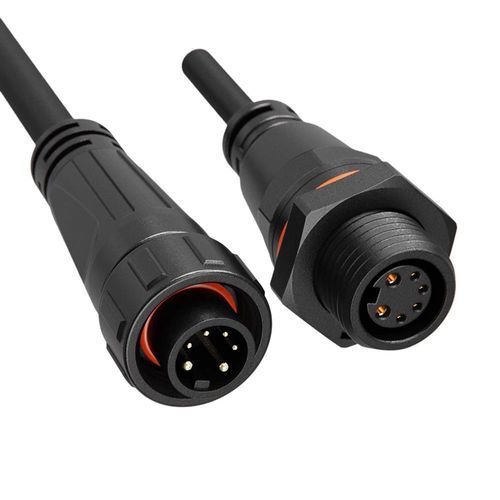

10A+5A hybrid screw‑locking M16 circular connector combining power and signal contacts in a single housing. Field‑installable and molded‑with‑cable options. Certified to UL, TUV, CE and RoHS; manufactured in ISO9001 / IATF16949 certified facilities.

Product Overview

• Power & Signal Hybrid – 2 power pins (10A/125V, Ø1.5mm) and 4 signal pins (5A/60V, Ø1.0mm) in one connector to reduce wiring complexity and save panel space.
• Screw Locking Mechanism – Threaded coupling ensures secure mating with anti‑vibration design suitable for mobile and industrial equipment.
• IP68 Waterproof – Fully sealed against dust and prolonged submersion; optional IP69K customization available for high‑pressure/high‑temperature washdown applications.
• Compact M16 Form Factor – Space‑saving circular housing for mixed contact configurations and dense assemblies.
• Assembly Options – Available as field‑installable cable assembly or pre‑molded cable assembly to match installation needs.
• Global Certifications – UL, TUV, CE, RoHS (produced in ISO9001 / IATF16949 certified factories).

Product Specifications (table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4 | Specification 5 | Specification 6 | Specification 7
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+4 Pin | 7 Pin | 8 Pin
Pin diameter X number | 1.5mm | 1.5mm | 1.5mm | 1.0mm | 1.5+1.0mm | 1.0mm | 1.0mm
Current rating | 10A | 10A | 10A | 8A | 10A+5A | 5A | 5A
Voltage rating | 300V | 300V | 125V | 125V | 125V+60V | 60V | 60V
Withstanding voltage | 1500V | 1500V | 1500V | 1500V | 500V | 500V | 500V
Cable Gauge | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.75+0.5mm² (18+20AWG) | 0.75+0.5mm² (18+20AWG) | 0.3mm²-0.5mm² (24-20AWG) | 0.3mm²-0.5mm² (24-20AWG)
Diameter Range | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm
Protection Level | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68
Connecting mode | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Product Advantages

• Waterproof & Dustproof – IP68 rating for prolonged submersion; IP69K option for washdown environments.
• Wide Temperature Range – Standard −40℃ to +105℃ (select series up to +125℃) for harsh climates.
• Flame‑Retardant Housing – Engineering plastic with UL94 V‑0 rating and impact resistance.
• Mating Durability – Rated for 500+ mating cycles for long‑term mechanical reliability.

Technical Specifications

• Model family: M16 hybrid waterproof circular connectors
• Contact arrangement (this SKU): 2 power contacts + 4 signal contacts
• Power contact rating: 10A (typical)
• Signal contact rating: 5A (typical)
• Contact diameters: power Ø1.5mm, signal Ø1.0mm (2+4 configuration)
• Voltage ratings: up to 125V for power, 60V for signals (see table for variants)
• Withstanding voltage: up to 1500V on many variants (500V for hybrid mixes)
• Cable gauge support: 0.3mm² to 1.0mm² depending on configuration
• Protection level: IP68 (optional IP69K)
• Locking: screw‑locking (threaded coupling) with anti‑vibration design
• Housing material: flame‑retardant engineering plastic, UL94‑V0
• Operating temperature: -40℃ to +105℃ (series dependent)
• Certifications: ISO9001, CE, UL, RoHS
