Hybrid connector
wire-to-wirebayonetM40

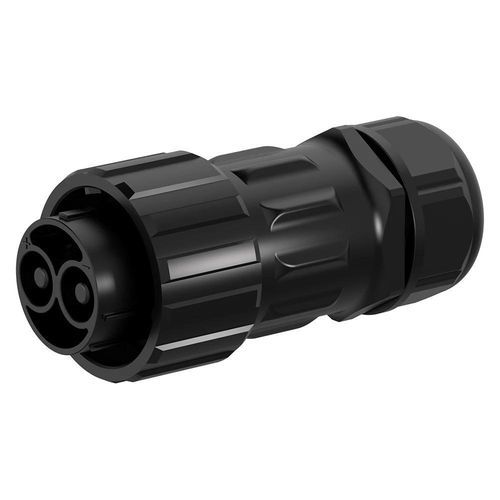

Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-wire / bayonet / M40
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-wire / bayonet / M40
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-wire / bayonet / M40 - image - 2
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-wire / bayonet / M40 - image - 3
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-wire / bayonet / M40 - image - 4
Hybrid connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-wire / bayonet / M40 - image - 5
Add to favorites
Compare this product

Characteristics

Type
hybrid
Format
wire-to-wire
Connection type
bayonet
Size
M40
Electrical characteristics
high-current, 2+4 pins, 3 pin, 3+9 Pin, 4 pin, 5 pin, with 2 pins
Domain
for electric vehicles
Protection class
IP67
Norms
RoHS
Other characteristics
for numerous mating cycles
Primary current

Min.: 10 A

Max.: 150 A

Voltage

60 V, 300 V, 600 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 105 °C
(221 °F)

Description

Short description
120A + 10A M40 hybrid bayonet-lock waterproof connector with 2 power pins and 4 signal pins for combined power and signal transmission.

Product overview
  • Hybrid power and signal – 2 power pins (6.0 mm, 120A) and 4 signal pins (1.5 mm, 10A) in a single M40 housing to reduce wiring and save space.
  • Bayonet lock – Quarter-turn quick mate with anti-vibration design for secure connections in industrial environments.
  • Ingress protection – IP67 sealed against dust and temporary immersion for outdoor and harsh conditions.
  • Temperature & durability – Operating range -40°C to 105°C and mating durability >500 cycles for demanding applications.


Variants and electrical ratings
  • Available variants: 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+4 Pin | 3+9 Pin.
  • Current ratings (examples): 2 Pin 150A; 4 Pin 120A; 2+4 Pin 120A (power) + 10A (signal).
  • Voltage ratings: power pins up to 600V; signal pins up to 60V.
  • Withstanding voltage: up to 5000V depending on variant.


Technical specifications
  • Pin diameters: power 6.0 mm; signal 1.5 mm (2+4 variant indicated as 6.0+1.5 mm).
  • Cable gauge: power 4–25 mm² (10–3 AWG); signal 0.3–1.5 mm² (24–16 AWG).
  • Maximum outer diameter: MAX φ25.0 mm.
  • Housing flame rating: UL94-V0. Certifications: ISO9001, CE, UL, RoHS, (TUV).
  • Mating durability: >500 mating cycles.


Applications
  • Battery management systems (BMS) and energy storage equipment.
  • Electric and hybrid vehicle power distribution and charging systems.
  • Industrial power distribution, outdoor machinery and harsh-environment equipment.


Ordering and compliance
  • Connector model: M40 2+4 Pin hybrid configuration. Specify variant, contact type and cable termination when ordering.
  • Compliance: UL, TUV, CE, RoHS. Operating temperature: -40°C to 105°C.
