Hybrid connector

click-lockmulti-conductorwith 2 pins

Product summary

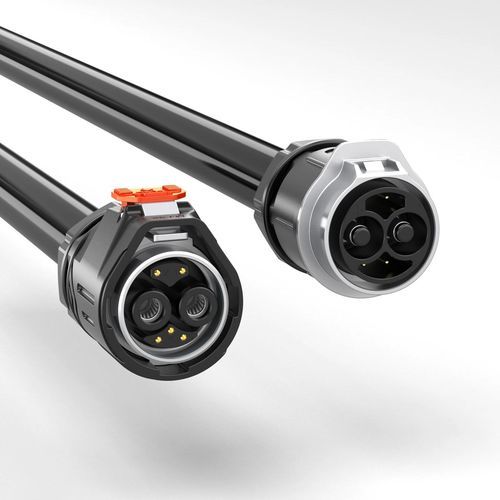

The JNICON MJ32 hybrid waterproof connector combines two 120A power contacts and five 10A signal contacts in a quick-lock, IP67-rated interface for BMS and industrial control wiring.

Key features

• 120A Power + 10A Signal – Hybrid connector with 120A power pins (6.0mm) and 10A multi-signal pins (1.5mm, gold-plated).
• Quick Lock Mechanism – Tool-free connection with audible feedback and anti-vibration design for secure locking.
• IP67 Waterproof Protection – Sealed interface for dust and temporary immersion (confirm mating and installation conditions for your application).
• Designed for BMS and Industrial Control – Optimized for battery management systems, hybrid signal transmission and industrial wiring.
• Global Certifications – Models produced under ISO9001 processes; CE, UL and RoHS certifications listed for series variants (validate applicable documentation for specific model/configuration).

Notes
Confirm the 2+5 pin configuration before ordering. The 120A power rating and 10A signal rating apply to separate contact groups and should not be treated interchangeably. Validate continuous and peak load, operating voltage per circuit, ambient temperature, conductor size, cable outside diameter, pin assignments and panel clearance. Verify temperature rise and sealing on the assembled cable under your application conditions.

Product Details (spec table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4
Pin number | 2 | 3 | 4 | 2+5
Pin diameter X number | 6.0 | 4.0 | 4.0 | 6.0+1.5
Current rating | 120A | 80A | 80A | 120A+10A
Voltage rating | 600V | 600V | 600V | 600V+60V
Withstanding voltage | 3000V | 2000V | 2000V | 2000V
Cable Gauge | 4mm²–25mm² (10–3AWG) | 4mm²–16mm² (10–5AWG) | 4mm²–16mm² (10–5AWG) | 1.0mm²–6mm² (18–9AWG)
Diameter Range | MAX Φ25.0mm | MAX Φ25.0mm | MAX Φ25.0mm | MAX Φ25.0mm
Protection Level | IP67 | IP67 | IP67 | IP67
Connecting mode | QuickLock | QuickLock | QuickLock | QuickLock
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Technical specifications

• Model / Series: MJ32
• Commercial designation: MJ32 (2+5 pin configuration variant)
• Contact configuration (this variant): 2 power + 5 signal
• Power contacts: 2 × 6.0 mm pins, rated 120A (per power contact group)
• Signal contacts: 5 × 1.5 mm pins, gold-plated, rated 10A (per signal contact)
• Voltage rating: 600V (power) + 60V (signal) as indicated for hybrid variant
• Withstanding voltage (insulation): 2000V (hybrid 2+5 variant)
• Cable gauge (2+5 variant): 1.0 mm² – 6 mm² (18–9 AWG) for signal group; power contacts use larger gauge per series table
• Maximum assembled cable diameter: MAX Φ25.0 mm
• Ingress protection: IP67 when correctly mated and assembled
• Connecting mode: QuickLock (tool-free, audible engagement, anti-vibration)
• Flammability: Housing material UL94-V0
• Operating temperature range: -40℃ to 105℃
• Mating durability: Rated for 500+ mating cycles (series validation)
• Certifications (series): ISO9001, CE, UL, RoHS (confirm applicable certificates for the exact model and configuration)
• Recommended design checks: validate mating pair drawing, continuous and peak currents per circuit, conductor size, cable outside diameter, panel clearance, temperature rise and sealing on assembled cable under application conditions
