Data connector electrical power supplywire-to-wirelocking
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- wire-to-wire
- Connection type
- locking, push-to-lock
- Size
- M23
- Electrical characteristics
- 8 pin, 15 pin, 6 pin
- Material
- plastic, copper, gold-plated
- Protection class
- IP67, IP69K
- Other characteristics
- waterproof, flame-retardant, with cable gland
- Primary current
5 A, 15 A, 20 A, 50 A
- Voltage
60 V, 125 V, 300 V
- Operating temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
Product Overview
Product Specifications
Technical characteristics
Typical applications
Ordering & manufacturing

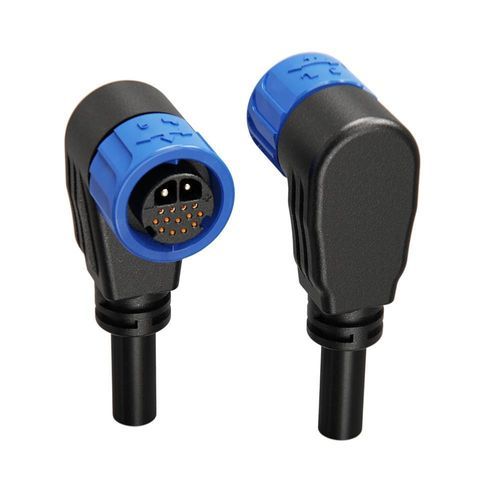

- High-Density 15-Pin Design – 2 power contacts (20A, φ2.4mm) and 13 signal contacts (5A, φ1.0mm) in a compact M23 housing for space-constrained installations.
- Push-Locking Mechanism – Tool-free self-locking push connector for quick mating/unmating and stable connections under vibration.
- IP67 Waterproof & Dustproof – Fully sealed against dust and temporary immersion (IP67).
- Flexible Cable Support – Supports 0.3mm²–6mm² (24–9 AWG) cables, maximum φ16mm outer diameter.
- Signal Integrity & Safety – Copper alloy contacts with gold/silver plating; housing rated UL94 V-0 for flame retardancy.
Product Specifications
- Pin configuration: 15 pins (2 power + 13 signal).
- Current rating: 20A (power contacts φ2.4mm) + 5A (signal contacts φ1.0mm).
- Voltage rating: typically 125V (power) + 60V (signal); variant dependent.
- Withstanding voltage: up to 3000V (variant dependent).
- Cable range: 0.3mm²–6mm² (24–9 AWG); maximum cable diameter φ16mm.
- Protection level: IP67; IP69K available on request.
Technical characteristics
- Series: M23 family.
- Contact material: Copper alloy with gold or silver plating for corrosion resistance and improved conductivity.
- Pin count options: 6 (2+4), 8 (2+1+5), 15 (2+13).
- Connecting mode: Push-locking (tool-free, self-locking).
- Flame retardancy: Housing UL94 V-0.
- Operating temperature: -40°C to 105°C (some variants up to 125°C).
- Mating durability: ≥500 mating cycles.
- Cable support examples: 0.3mm²–6mm² (24–9 AWG).
- Maximum cable diameter: φ16mm.
- Available certifications: ISO9001, CE, UL, RoHS, TUV (as applicable).
- Optional customizations: IP69K, alternative plating, or tailored cable glands and seals.
Typical applications
- Industrial sensors and actuators.
- Data transmission in factory automation and control systems.
- Robotics, motion control and machine tools.
- Outdoor and washdown equipment requiring waterproof connections.
Ordering & manufacturing
- Manufactured in ISO9001-certified facilities with batch traceability.
- Contact supplier for samples, datasheets and customization (IP69K, cable glands, alternative plating).
