Data connector

screw-lockedM162+4 pins

Product Summary

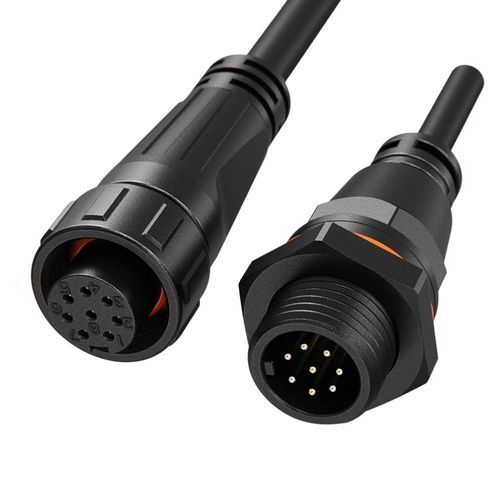

5A 8-pin screw-locking waterproof signal connector with IP68 rating, field-installable or molded-with-cable options. Optimized for high signal density in an M16 footprint while delivering environmental and mechanical protection required for outdoor and industrial sensor installations.

Key Features

• 8-Pin Signal Density – 8 signal pins rated 5A/60V with Φ1.0 mm contacts to maximize connections in a compact M16 interface.
• Screw Locking Mechanism – Threaded coupling for secure, vibration-resistant mating.
• IP68 Waterproof – Fully sealed against dust and water for outdoor and harsh-environment equipment.
• Versatile Applications – Suitable for sensor networks, encoders, fieldbus and control system wiring.
• Assembly Options – Available field-installable or molded-with-cable to suit installation needs.
• Global Certifications – ISO9001 production standards with CE, UL, RoHS and optional TUV factory certification.

Specifications (table view)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4 | Specification 5 | Specification 6 | Specification 7
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+4 Pin | 7 Pin | 8 Pin
Pin diameter X number | 1.5mm | 1.5mm | 1.5mm | 1.0mm | 1.5+1.0mm | 1.0mm | 1.0mm
Current rating | 10A | 10A | 10A | 8A | 10A+5A | 5A | 5A
Voltage rating | 300V | 300V | 125V | 125V | 125V+60V | 60V | 60V
Withstanding voltage | 1500V | 1500V | 1500V | 1500V | 500V | 500V | 500V
Cable Gauge | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.75+0.5mm² (18+20AWG) | 0.75+0.5mm² (18+20AWG) | 0.3mm²-0.5mm² (24-20AWG) | 0.3mm²-0.5mm² (24-20AWG)
Diameter Range | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm
Protection Level | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68
Connecting mode | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C
Certification | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS

Applications & Advantages

• Designed for sensor networks and data-sensitive fieldbus systems requiring compact, reliable signal connections.
• Screw-lock coupling provides vibration-resistant mating for industrial equipment.
• IP68 sealing and a wide operating temperature (-40°C to 105°C) make it suitable for outdoor and harsh environments.
• Flame-retardant housing (UL94-V0) and high mating-cycle durability reduce maintenance and replacement needs.

Technical specifications

• Model family: M16
• Pin count (typical for this SKU): 8 pins
• Contact diameter: Φ1.0 mm
• Rated current: 5A (per signal contact)
• Rated voltage: 60V
• Withstand voltage: 500V
• Cable gauge compatibility: 0.3mm²–0.5mm² (24–20 AWG)
• Maximum cable outer diameter: MAX φ3.6 mm
• Ingress protection: IP68
• Connection method: Screw locking (threaded coupling)
• Flammability rating: UL94-V0
• Operating temperature range: -40°C to 105°C
• Certifications: ISO9001, CE, UL, RoHS (UL/TUV factory certification available)
