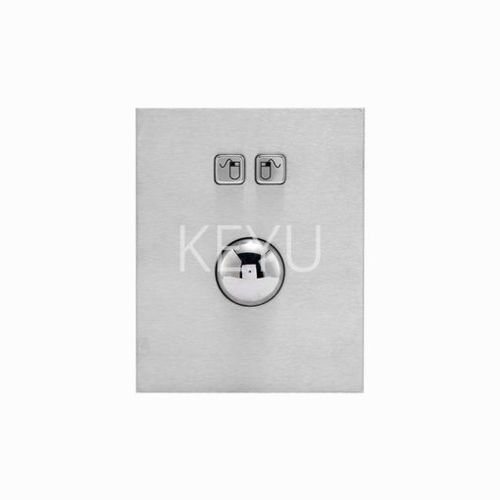

Mechanical trackball KY-TB-38-B
panel-mount38 mmstainless steel

mechanical trackball
mechanical trackball
mechanical trackball
Add to favorites
Compare this product


Ball diameter
38 mm
Other characteristics
stainless steel, waterproof, vandal-proof


Dimension : Front Panel: 107*134 mm Overall : 107*134 mm Feature: Patent product, high resolution trackball Resistant to dirt, dust and liquid Very rugged vandal proof design Mounting kit and Desktop kit optional Front Panel :304 stainless steel Trackball and keys: 304 stainless steel Back panel: Aluminum Voltage: 5.0VDC+_5% EMC Emission : EN55022(B) Resolution: above 800dpi DESCRIPTION Mechanical / Electrical Data: Power Supply - DC5V±5% Working Current - <150mA Interface - USB、PS/2 Operation Force - <2N Durability - ≥ 2Million Mounting Way - Rear mounting or Front mounting Storage Temperature - -10℃~55℃(Relative humidity20%~85%/ Atmospheric pressure60~106Kpa) Storage Temperature - -30℃~85℃(Relative humidity5%~90%/ Atmospheric pressure60~106Kpa) Compatible With Systems - Window XP、Window 7、Window 8、Linux、Ubuntu、Android Approvals - ROHS、IP65、FCC、CE Applications: kiosks, vending machine, self-service terminal, industrial equipment, library Etc
