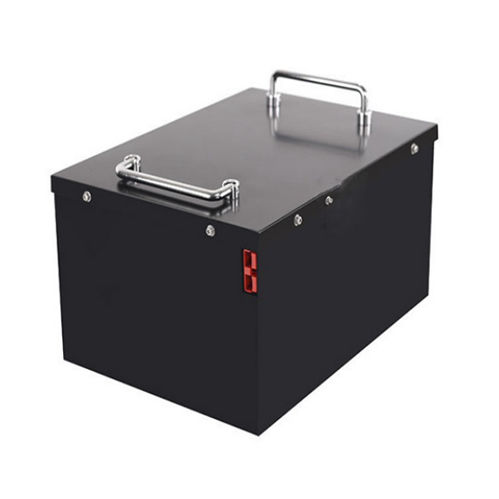

Lithium-ion battery
rectangular

lithium-ion battery
lithium-ion battery
lithium-ion battery
Add to favorites
Compare this product


Characteristics

Type
lithium-ion
Configuration
rectangular
Load capacity

50 Ah

Description

Customized 60V50AH Lithium Iron Battery Used in electric motorcycles, electric two-wheelers, electric tricycles, electric four-wheelers (customizable) Rated voltage - 60V Rated Capacity - 50Ah Discharge cut-off voltage - 47.6V Charge protection voltage - 71.4V Maximum charging voltage - 72V Maximum charging current - 10A Maximum continuous discharge current - 50A Peak current - 100±3A 2S Rated discharge current - 25A Serial and parallel - 17S Internal resistance - ≤100mΩ Weight - 24.0Kg Cycle life - 1200 Times Charge and discharge interface - Anderson (customizable) Operating temperature - Recharge 0~45℃ Discharge-20℃~55℃ Storage temperature - 60-80%SOC -10℃~35℃ Parameters required for customized products Nominal voltage (V) - Rated discharge current (A) Rated capacity - Rated charging current (A) Rated energy - Range of working temperature Rated charging power - Size space Rated discharge power - Weight restriction
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
