Affordable and economic gloss meter
One movement, one result. Easy to operate
Support QC mode to improve measurement efficiency
Conform to Chinese Grade 2 working machine standards

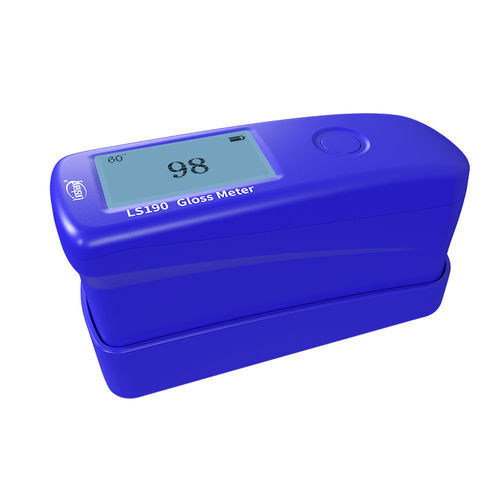

LS190 is a handheld gloss meter with a measuring range of 0-200GU. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. It is easy to use and you can get the measurement results at once after testing under the normal mode. No need to wait. The device can switch the normal mode to QC mode, which can realize quick inspection to improve efficiency. LS190 gloss meter meets the national standard of secondary working machine which means accurate measurement and stable data.
Measuring Angle - 60°
Measuring Light spot - 9mm*15mm
Minimum Test Material Size - 20mm*10mm
Measuring Range - 0-200GU
Resolution - 1GU
Repeatability - 0-100GU:±1GU
100-200GU:±1%
Reproducibility - 0-100GU:±1GU
100-200GU:±1%
Zero Error - 1GU
Indication Error - 0-100GU:±3GU
100-1000GU:±3%
Power Supply - Lithium rechargeable battery 3.7V@650mAh
Display - 240×128 Dot Matrix
Language - Simplified Chinese, English
Charge Port - USB(Type-C)
Data Transmission - USB
Size - 140*48*75mm
Weight - About 237g
Working Temperature - 10~45℃,0~85%RH (no condensation)
Storage Temperature - -10~60℃, 0~85%RH (no condensation)
In order to meet the needs of different customer groups, LS195 breaks through the bottom line in price and hits a record low than other gloss meter of Linshang. In terms of quality, it strives for excellence as usual. Each and every Linshang gloss meter has passed:
634 calibration tests
67,300 stability tests
