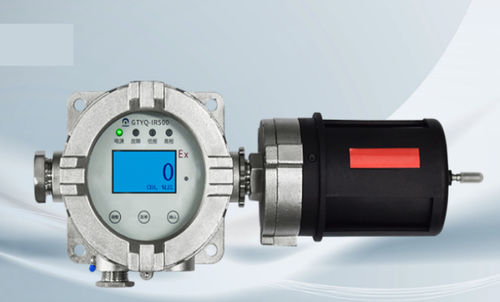

Flammable gas detector GTYQ-IR500

gaspowerhumidity

- New generation ceramic tube photo-ionization detection (PID)technology - Patented filter unit , can operate properly under severe environment, such as high humidity, high salt mist and so on - With switchable mg/m3 and ppm unit - With built-in high performance micro vacuum pump internally installed, quick response, short recovery time - With built-in temperature –humidity sensor, with real-time temperature, humidity compensation function - With built-in multiple response factors, easy for measuring specific VOCs gas - Patented two-channel gas inlet system design, with auto-cleaning and auto-zero function - With alarm history records , with real-time STEL, TWA, concentration curve display - Modular design, easy for maintenance and replacement DETECTION PRINCIPLE - Infrared absorption with long optical distance dual optical path DETECTION RANGE - 0-100%LEL（Standard detection range） 0-5%vol/100%vol (Available range) DETECTION METHOD - Diffusion STABILITY IN WHOLE LIFETIME - ±5%F.S.(5Years) ACCURACY - ±3%F.S.（0-50% reading） ±5%F.S.（50-100% reading） RESOLUTION - 1%LEL(Standard detection range) 0.05%vol/1%vol (Available range) RESPONSE TIME - T90≤6S DISPLAY METHOD - OLED HD display, LED indication ALARM METHOD - LED lighting alarm(Audible and visual alarm is optional) ADJUSTMENT METHOD - Infrared remote control and magnetic POWER SUPPLY - 24VDC(18-32VDC) POWER CONSUMPTION - ＜8W HOUSING MATERIAL - 335x124x132mm(WxHxD) WEIGHT - 5800g(SS316 housing) Display method - HD OLED display, LED indication Alarm method - LED light alarm, (optional pop sound and light alarm) Adjustment method - Infrared remote control, magnetic stick
