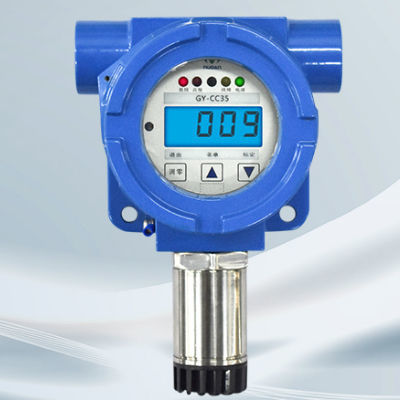

Gas detector GY-CC35

combustible gaspowerhumidity

- High-precision imported catalytic combustion, infrared absorption sensor - Multiple signal output, HART communication interface, multiple wire connection - Pluggable intelligent sensor module, easy to replace - Infrared remote control to adjust punctuation, easy to operate - Automatic zero adjustment, automatic identification of faults and automatic prompting of errors - Explosion-proof dual certification for explosive gas atmosphere and combustible dust environment DETECTION PRINCIPLE - 0~100%LEL DETECTION RANGE - Diffusion DETECTION METHOD - ≤±2% F.S. ACCURACY - 1%LEL RESOLUTION - ≤±2% F.S. REPEATABILITY - T90 ≤15S RESPONSE TIME - LCD display, LED indication DISPLAY TYPE - LED light alarm, Ex-proof audible and visual alarm (optional) ALARM TYPE - Infrared remote controller, magnetic bar ADJUST METHOD - 24VDC（15~30VDC） CABLE CONNECTION - ≤1000m，3(4)×1.5mm2 POWER SUPPLY - ≤3W (with Ex-proof audible and visual alarm ≤5W) ELECTRICAL INTERFACE - NPT3/4″(F) (Other size is available as request) OPERATION TEMPERATURE - -40℃~+70℃ OPERATION HUMIDITY - 0~99%RH/Non condensation SENSOR LIFETIME - ≥5years OUTPUT SIGNAL - 4~20mA（three wires） Relay output (1A 30VDC) 24VDC relay output (for audible and visual alarm); MODBUS / RS 485(optional) 4~20mA+HART (optional) EC TYPE CERTIFICATE - Ex d ⅡC T6 Gb / DIP A20 TA,T6 INGRESS PROTECTION - IP66 OUTLINE DIMENSIONS - 140×202.5×108mm（WxHxD） WEIGHT - 2,200g
