Brushless motor controller 716PCASTS0030
3-phaseBLDCfor fans

Brushless motor controller - 716PCASTS0030 - Shenzhen Power Motor Industrial Co., Ltd. - 3-phase / BLDC / for fans
Brushless motor controller - 716PCASTS0030 - Shenzhen Power Motor Industrial Co., Ltd. - 3-phase / BLDC / for fans
Brushless motor controller - 716PCASTS0030 - Shenzhen Power Motor Industrial Co., Ltd. - 3-phase / BLDC / for fans - image - 2
Add to favorites
Compare this product
Go to the Shenzhen Power Motor Industrial Co., Ltd. website for more information

Characteristics

Motor type
brushless, 3-phase, BLDC
Applications
for fans
Other characteristics
high-voltage, board-mount, PCB, compact, with integrated variable speed control
Input voltage

Max.: 230 V

Min.: 100 V

Motor power

Max.: 0.1 kW
(0.1 hp)

Min.: 0 kW
(0 hp)

Rotational speed

Max.: 100,000 rpm
(628,318.5307 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

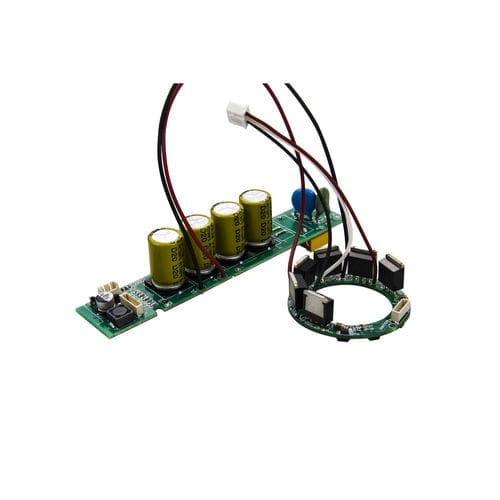

Product description High-voltage 3-phase brushless DC motor controller with sensorless sinusoidal control. AC100/AC230V input. Rated power <110W. Integrated speed control. Designed to drive 2 pole-pair motors up to 100000 rpm. This control board is a non-standard customized product provided for reference; final specifications must be agreed.

Application
  • Dedicated for compact brushless hair dryers operating at 100000 rpm


Mechanical details
  • Motor control board: Φ42 / H22
  • Handle dimensions: 116 × 22 × 24 mm


Selection note Specifications, dimensional units and operating conditions are subject to the agreed specification between supplier and customer.

Related applications
  • Hair dryer


Features / technical specifications
  • Model: 716PCASTS0030
  • Type: High-voltage 3-phase brushless DC motor controller
  • Input: AC100V / AC230V
  • Control: Sensorless sinusoidal (sine-wave) control
  • Power: <110W
  • Speed control: Yes
  • Max speed (for 2 pole pairs): up to 100000 rpm
  • Intended application: 100000 rpm compact brushless hair dryers
  • Board dimensions: Φ42 / H22
  • Handle dimensions: 116 × 22 × 24 mm
  • Product status: Non-standard customized product (reference only)
  • Selection note: Final specifications and operating conditions to be confirmed by agreement
