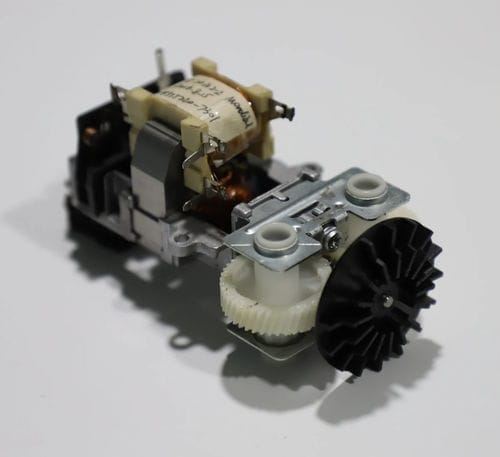

AC motor PU.4515220 Vcompactsmall-size
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V
- Configuration
- compact, small-size
- Applications
- for household appliances, for mixers
- Other characteristics
- high-speed
- Power
0.08 kW
(0.11 hp)- Intensity
0.45 A, 0.84 A
- Torque
0.053 Nm
(0.039091 ft.lb)- Rotational speed
14,200 rpm, 22,000 rpm
(89,221.2314 rad.min-1, 138,230.0768 rad.min-1)
Description
Product overview
PU.4515220-7301 is an AC motor designed for hand mixer applications. Rated output: 80 W at 220V/60Hz. No-load speed and efficiency data make it suitable for compact handheld mixers.
Technical profile
Performance data (table)
MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W
PU.4515220-7301 | 220V/60Hz | 220V/60Hz | 22000 | 0.45 | 14200 | 0.84 | 53 | 80
Notes
Values describe a specific configuration. Voltage, torque, speed, current, power and shaft dimensions may vary with customer requirements. Confirm the exact specification and operating conditions before selection.
Characteristics / technical specifications
PU.4515220-7301 is an AC motor designed for hand mixer applications. Rated output: 80 W at 220V/60Hz. No-load speed and efficiency data make it suitable for compact handheld mixers.
Technical profile
- Platform: PU.4515
- Specification models: PU.4515220-7301
- Typical applications: Hand mixer
- Voltage: 220V/60Hz
- No-load speed: 22000 r/min
- No-load current: 0.45 A
- At maximum efficiency - speed: 14200 r/min
- At maximum efficiency - current: 0.84 A
- At maximum efficiency - torque: 53 mN·m
- At maximum efficiency - output: 80 W
Performance data (table)
MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W
PU.4515220-7301 | 220V/60Hz | 220V/60Hz | 22000 | 0.45 | 14200 | 0.84 | 53 | 80
Notes
Values describe a specific configuration. Voltage, torque, speed, current, power and shaft dimensions may vary with customer requirements. Confirm the exact specification and operating conditions before selection.
Characteristics / technical specifications
- Platform: PU.4515
- Model (specification): PU.4515220-7301
- Typical application: Hand mixer
- Voltage: 220V/60Hz
- No-load speed: 22000 r/min
- No-load current: 0.45 A
- At maximum efficiency - speed: 14200 r/min
- At maximum efficiency - current: 0.84 A
- At maximum efficiency - torque: 53 mN·m
- At maximum efficiency - output: 80 W
