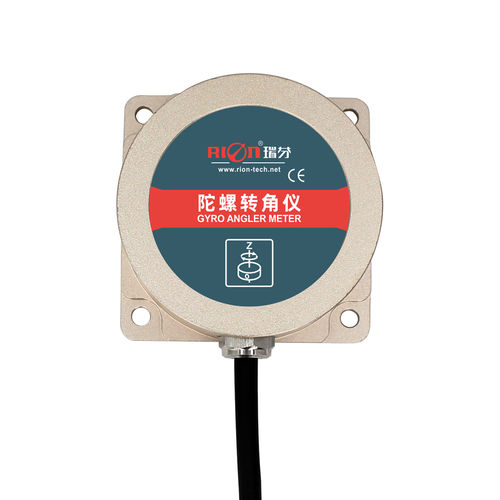

MEMS gyroscope TL740D

analog

● MAIN FEATURES ★ relative heading angle output ★ Strong vibration resistance ★ Light weight ★ Long life,strong stability ★ DC9~36V power supply ★ All solid state ★ Compact & light design ★ RS232/RS485/TTL output optional ★ Cost-effective ● APPLICATION FIELD ★ AGV truck ★ Car Navigation ★ 3D virtual reality ★ Platform stability ★ Auto safety system ★ Industrial control ● PRODUCT INTRODUCTION - TL740D is newly developed horizontal relative heading angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s relative heading angle .Integrated inertial navigation algorithm within the product, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible . This product is specially used for robot car, AVG vehicle relative heading orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
