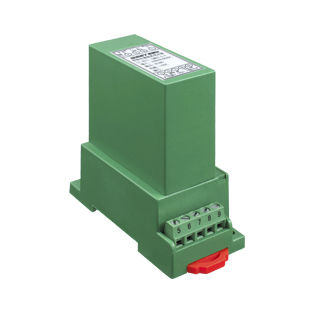

Electrical resistance measuring device CE- R03-74MS-0.5 series

electronictransducerDIN rail

The product is a resistance transducer, can linearly convert the input resistance signal into a standard electrical signal. Input is the resistance signal, the output is the two-way independent 4-20mA signal. The power supply is isolated from the input. The product can be directly used for resistance measurement, it is also used with a variety of resistive sensors, such as resistive displacement sensors, resistive valve position sensors, etc. It can be widely used in telecommunications, electricity, machinery, railways, industrial control and other fields. Test conditions: auxiliary power: 220V (AC/DC); Input range: 0~ (100Ω~ 1KΩ); Output: 4~ 20mA (two-way); Power supply: 220V (AC/DC); Accuracy: 0.5class (With reference error); Operating temperature: 0~50℃; Temperature drift: 250ppm/℃; Isolation voltage: 2500V DC; Load capacity: 100~300Ω; Response time: ≤250 mS; Rated power consumption: ≤500mW Output ripple: None; Frequency response range: None; Surge Immunity: None; Burst immunity: None.
