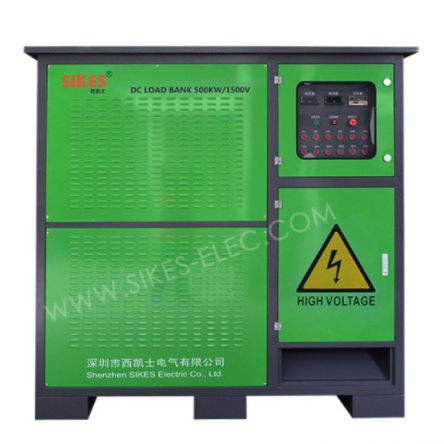

Custom load bank SKS-RDC-500KW-1500V

DCcontainerizedresistive

DC resistive load bank can accurately test of generator output power and load capacity, mainly for all electric generating set parameters, including dynamic parameters. 1.High security: self-protection for short-circuit, low volume, and high temperature. 2.Reliable performance: continuous use in all day. 1.For marine generator unit 2.For gas load test, 3.For ships and ocean engineering plant load test. 4.For UPS and charging system test 1.Power range: 1KVA-1MVA 2.Power factor: 1.0 3.Voltage range: DC 12V-1500V 4.Protection class: IP65 for control 5.Load features: resistive load, inductive load and resistive-inductive load. 6.Load protection: short-circuit, overvoltage, overcurrent, high temperature, lowest air flow. 7.Load control: remote manual operation or remote computer operation 8.Test protection: meet the requirements of national, marine military, and telecommunication test(optional) 9.Cooling: air forced 10.Ambient temperature: -10℃-55℃ 11.Altitude: ≤3000m 12.Standard: ISO,FCC,CE AC/DC - DC IP Class - IP 65 Nominal Voltage range (V) - 1500 Power Factor - 1.0 Load Power (KVA) - 500
