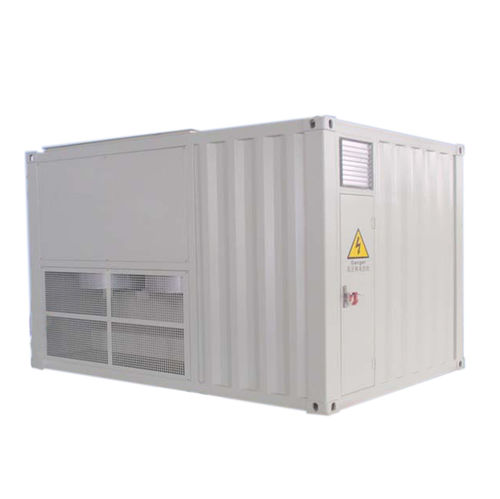

RL Series can accurately test of generator output power and load capacity, mainly for all electric generating set parameters, including dynamic parameters. This series adopts computer control mode, which can be done automatically for all electric generating set of each test, displaying real-time test data, and generating charts, curves,testing report, and test project for high-power generating equipment.
High-efficiency controll abilitity: computer automatic control one-touch operation.
High security: self-protection for short-circuit, low volume, and high temperature.
Reliable performance: continuous use in all day.
Multiple control mode: computer, touch screen and manual control.
Power range: 500KVA-6MVA
Power factor: 0.8-1.0
Voltage range: AC400V/440V/480V/690V/3.3KV/6.6KV/10.5KV/16KV
Operating frequency: 50-60Hz
Protection class: IP55
Insulation class: F/H
Load features: resistive load, inductive load and resistive-inductive load.
Load protection: short-circuit, overvoltage, overcurrent, high temperature, lowest air flow.
Load control: remote manual operation or remote computer operation
Test protection: meet the requirements of national, marine military, and telecommunication test(optional)
Cooling: air forced
Ambient temperature: -10℃-55℃
Power supply: AC380V/50Hz/three phase four wire system
For marine generator unit and gas load test, ships and ocean engineering plant load test.
