Intel Core i3 laptop computer N40-U

Intel Core i7Intel® Core i5-1235UWindows 10

Product overview

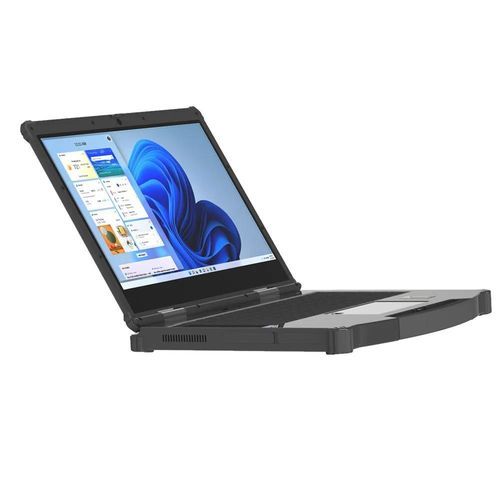

The N40-U is a 14-inch industrial rugged laptop designed for mobile workstations and field operations. Configurable with 12th Gen Intel processors (I3-1215U / I5-1235U / I7-1255U; standard I5-1235U), up to 32GB RAM and removable secure SSDs. The FHD display reaches up to 800 nits with 10-point touch, stylus and thin-glove support. Dual-battery design and comprehensive wireless options make the device suitable for extended outdoor and industrial use.

Key features

• 12th Gen Intel Core options (I3/I5/I7) — standard I5-1235U for balanced performance
• 14" FHD (1920×1080) panel, up to 800 nits; 10-point touch, stylus and thin-glove operation
• Modular memory/storage: 8/16/32GB RAM and removable secure SSD options (256/512GB/1TB)
• Dual battery system (6000mAh + 3000mAh) — approx. 8h video playback; ~4.5h charging time
• Wide connectivity: 4G LTE, WiFi 6, Bluetooth 5.0; optional high-precision GPS/BDS/GLONASS and fingerprint/NFC
• Rich I/O: 4×USB3.0, 1×Type-C, RJ45 (1 or 2), HDMI, RS232, SIM, TF and secure SSD slots
• Rugged construction: IP65 ingress protection, 1.2 m drop rating; ABS/PC/TPU/aluminum materials

Technical specifications (N40-U)

• OS: Windows 10/11 Home / Pro / IoT
• CPU: Intel I3-1215U / I5-1235U / I7-1255U (standard I5-1235U)
• RAM: 8GB / 16GB / 32GB (configurable)
• Storage: Removable secure SSD 256GB / 512GB / 1TB (options)
• Display: 14" FHD 1920×1080, up to 800 nits, 10-point touch
• Cameras: 5MP / 13MP (MIPI)
• Battery: 6000mAh (7.6V) + 3000mAh (15.2V); charging ~4.5H; usage ~8H (video)
• WWAN: 4G LTE / 3G WCDMA / GSM (Quectel EC25AUGC) with listed frequency bands
• GPS: GPS / Beidou / GLONASS; optional high-precision module (0.25–1 m)
• WiFi: 802.11a/b/g/n/ac; 2.4/5 GHz; WiFi 6 supported
• Bluetooth: 5.0
• NFC: 13.56 MHz front NFC (3–5 cm), optional Mifare
• Audio: 1.5W speaker; multimedia codecs up to 1080p
• Ports: USB3.0×4, Type-C×1, RJ45×1 (or ×2), HDMI×1, RS232×1, DC-in, MIC/HP, SIM, TF, secure SSD slot
• Dimensions / Weight: 335×265×32 mm / 1.85 kg
• Materials & Protection: ABS/PC/TPU/rubber + aluminum; IP65; MIL-STD-810G (810G)
• Temp: Operation -20 to 60°C; Storage -25 to 80°C
• Certifications: CE, FCC
