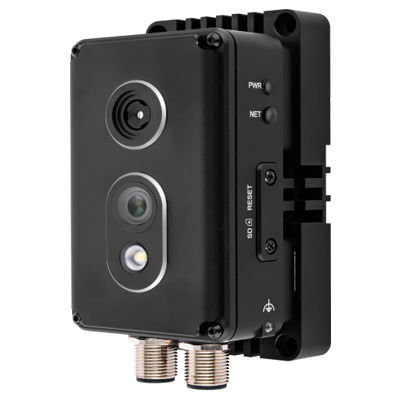

Monitoring camera SN-D2L-F3Dthermal imagingdetection
Add to favorites
Compare this product
Characteristics
- Technology
- 3D
- Function
- monitoring, detection, thermal imaging
- Spectrum
- multi-spectral
- Sensor
- CMOS, microbolometer
- Other characteristics
- IP67, IP66, uncooled, with built-in SD card slot, compact
Description
• Sensitivity ≤60mK
• Support 3 temperature measurement rule types (Spot, Line, Area)
• Temperature range: -20°C ~ 150°C (-4°F ~ 302°F)
• Temperature accuracy: ±2 °C, ±2%
• Reliable temperature exception alarm function
• Up to 17 pseudo color modes
• 10-30V DC/PoE power supply
Resolution
256(H)×192(V), Image can be scaled up to 704×576
Pixel Pitch
12μm
Spectral Range
8~14um
Thermal Sensitivity (NETD)
≤ 60mK
Focus Control
Manual Focus
F No.
F1.1
Focal Length
2.0 mm
Angle of View
H: 90°, V:65°
VIDEO
