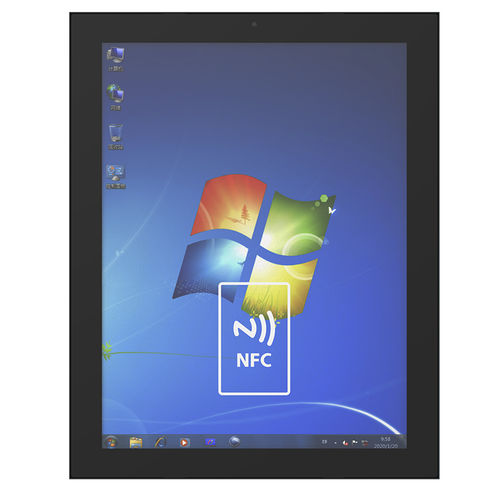

projected capacitive touchscreen monitor / TFT-LCD / 15" / 1024 x 768
TM-OC150HNFC-312

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
projected capacitive touchscreen monitor / TFT-LCD / 15 projected capacitive touchscreen monitor / TFT-LCD / 15" / 1024 x 768 - TM-OC150HNFC-312
{{requestButtons}}

Characteristics

  • Technology:

    TFT-LCD, projected capacitive touchscreen

  • Display size:

    15"

  • Resolution:

    1024 x 768

  • Mounting:

    VESA mounting, chassis-mounted

  • Other characteristics:

    high-brightness, VGA-DVI port, compact, fanless, HDMI, wide temperature range, sunlight-readable, IP65, dust-proof

  • Applications:

    industrial, POS, for industrial machines, for CNC machines, marine, for displays, for IoT applications, versatile

Description

● 15.0’’ TFT LCD, LED backlit, Resolution 1024 x 768;
● Multi 10-points Pcap. touchscreen (RS232 interface);
● 3mm thickness tempered glass;
● Aluminum-magnesium alloy, anodic treatment;
● High brightness 1000 nits, with automatic light sensor;
● Multi DVI+VGA Signal input;
● Internal NFC module integrated, RS232 interface;
● NFC protocol: ISO 14443A, Mifare, Mifare Plus, DESFire EV1, ISO14443B, Felica;
● Industrial wide temp. -20 ~ +60C range, DC 9~36v power input;
● Rear mounting and VESA mounting;

TAICENN TM-OC150H-312 series is an enhanced stability and reliability industrial 15.0-inch rear mounting (open-frame) P-cap. Touch monitor product. It integrates NFC reader module internally, including ISO14443A/B, Mifare, DESFire EV1, Mifare plus, and read sony Felica. The design uses a multi-point (10- points) projective capacitive touch screen, RS232 touch interface; and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.
The TM-OC150H-312 also integrate with high brightness 1000nits, with an automatic light sensor in the front bracket. It uses full-sealed box construction, and its front panel complaints NEMA / IP65 waterproof and dust-proof standard, to prevent installation in the control cabinet because of the scene splashing water droplets and water vapor into the host and thus affect equipment operation; high-strength steel box structure, so that it can adapt to the harsh industrial site work environment.

Basic Parameter
Button OSD Button in back panel
Overall Dimension 277.9 x 350.8 x 55 mm (W*H*D)
CUT-OUT Dimension 230.0 x 306.0mm (W*H)
Structure Front Panel: Aluminum-magnesium alloy, anodic treatment
Back panel: SGCC
