● High temp. 5-wires resistive touch, EETI controller;
● PET film laminated, true flat design, front IP65 rated protection;
● Panel mount, support VESA 75/100 mount;
● DC 12~24V input, with over-current, over-voltage protection;
● 2*Intel GLAN, 6*RS232 (Optional 1*RS485), 6*USB (4*USB3.0);
● Expansional with 3G/4G/LTE, Wi-Fi/BT wireless;
● I/O: 6x USB, 2x GLAN, 6x COM, 1x HDMI, 1x VGA, Audio.

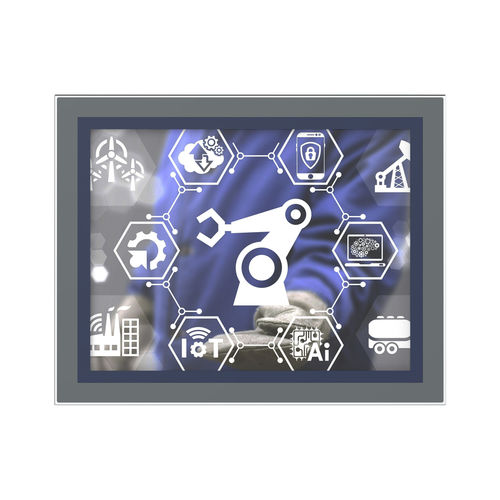

TAICENN TPC-PR150K series is a high performance, Fan-less designed, enhanced stability and reliability industrial 15.0-inch Touch Panel PC product. It adapts Intel 7th –gen Core i3/i5/i7 processor. TPC-PR150K series storage can support 2.5 SATA and mSATA interface, HDD or SSD. The design uses a high-temp. five-wires resistive touch, together with a specific PET film laminated to be true flat design. And it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.
The TPC-PR150K uses full-sealed box construction, and it can prevent dust from entering the device system. The TAICENN TPC-PR150K is compatible with Win7, Win8, Win embedded, Win10, Linux OS, and it also has a good compatibility with customized applications and software programs.
Hardware & System
BIOSSPI AMI EEI BIOS
CPUIntel Core i3-7100UIntel Core i5-7200UIntel Core i7-7500U
CPU Ghz2.4Ghz2.5Ghz, burst to 3.1 Ghz2.7Ghz, burst to 3.5Ghz
MemorySO-DIMM, DDR4L, max. up to 16GB (Single Slot)
Storaqe1*2.5“ SATA+ 1*mSATA
GraphieIntel HD Graphics 620
Network2* Intel 1211 AT (Optional 3G/4G/Wi-Fi)
