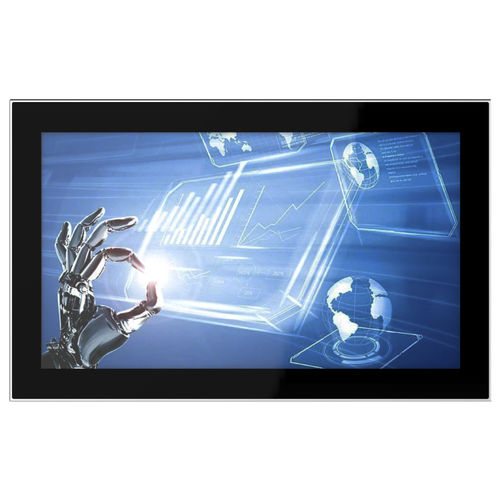

TFT LCD panel PC TPC-DCM156W
multitouch screenPCAP capacitive touch screenLED backlight

TFT LCD panel PC
TFT LCD panel PC
TFT LCD panel PC
TFT LCD panel PC
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, multitouch screen, PCAP capacitive touch screen, LED backlight, widescreen
Display size
15.6"
Resolution
1366 x 768
Processor
Intel® Celeron®, dual-core, quad-core, 8th generation Intel® Core™ i3, 8th generation Intel® Core™ i5, 8th generation Intel® Core™ i7
Other characteristics
fanless, ultra-compact, HMI, all-in-one, slim design, metal chassis, fullscreen, VESA mounting, IP65, waterproof front panel
Applications
industrial, for hazardous areas, for IoT applications, for the mining industry

Description

Model:TPC-DCM156W ● Magnesium aluminum panel, sheet-metal box structure; ● 15.6" TFT LCD, LED backlit, resolution 1366*768; ● Intel Whisky Lake 8th-gen. Celeron, Core i3/i5/i7 processors; ● Multi-points projective capacitive touch, EETI controller; ● Fanless & slim design, front IP65 rated protection; ● Panel mount, support VESA 75/100 mount; ● DC 9~24V input, with over-current, over-voltage protection; ● 2*Intel GLAN, 2*RS232 (Optional 1*RS485), 4*USB3.0, 2*USB2.0; ● Expansional with 3G/4G/LTE, Wi-Fi/BT wireless; ● I/O: 6x USB, 2x GLAN, 2x COM, 1x HDMI, Audio. TPC-DCM156W, the latest of TAICENN Technology 15.6 all in one Panel PC stands out with its ability to adapt to lots of industrial & automation applications. This 15.6" touch Panel PC with innovative and modular design is available with newest 8th-generation Celeron, Dual-Core i3, Quad-core i5 i7 processors. Its 15.6-inch, 1366*768, LED screen proposed in capacitive technology touchscreen version will facilitate your manipulations. The fanless and IP65 on front panel will resist the most demanding applications. The 15.6 all in one Panel PC with touchsreen TPC-DCM156W is designed with a variety of IO ports, including 2x Ethernet GLAN ports, 6x USB3.0/2.0 ports, 2x RS232 ports, 1x HDMI display port...It support with Panel mount and VESA 75/100 mount option. These Panel PCs are perfect for many demanding environments that require a space saving solution capable of 24/7 high performance computing. All of our panel pc bezels are full sealed for added NEMA and IP65 standard Protection.
