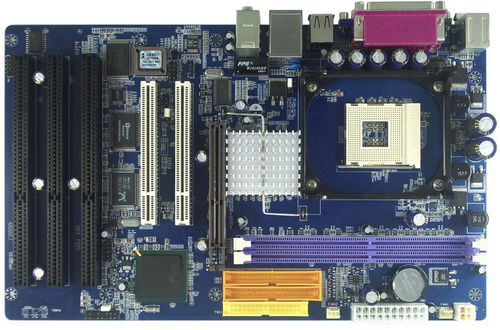

ISA interface card AMI-I845GV-3ISA
ATXEthernetRS-232

ISA interface card
ISA interface card
ISA interface card
ISA interface card
Add to favorites
Compare this product


Characteristics

Bus standard
ISA, ATX
Bus
RS-232, Ethernet, USB
Applications
industrial

Description

Support Celeron 4 /Pentium 4 CPU Support 3 *ISA 2 x COM (2 x RS-232) Onboard VGA,SOUND,LAN Support DDR 266/333 DIMM max up to 2GB SIZE:ATX,293mm * 180mm CPU - Socket 478 for Celeron® 4 /Pentiun®4 FSB 533   -   System Memory - 2 x 184-pin DDR 266/333 DIMM max.up to 2GB   -   Chipset - Intel® 845GV+ ICH*4   -   BIOS - Award BIOS with 4Mbit Flash ROM Supports Plug and Play 1.0B,APM 1.2, Multi Boot, DMI   -   Expansion Interface - 2*PCI expansion slot,1*AGP 4/8X, 3*ISA   -   Battery - Lithium 3V/196 mAH   -   Operation Humidity - 10%~90% relative humidity, non-condensing   -   MIO - 2 x ATA-100 IDE, 1 x FDD, 1 x PS/2 K/B, 1 x PS/2 MS, 2 x COM (2 x RS-232), 1 x LPT, 1 x RJ-45   -   Ethernet - Realtek RTL8100C Fast Ethernet controllers   -   Audio - Realtek ALC655 AC'97 Codec Audio   -   USB - 6 x USB 2.0 ports (2 ports form 1 header)   -   Memory Size - Max.up to 64MB frame buffer sharing system memory   -    -   Output Interface - VGA port   -   Accessories - 1 x 40 pin IDE cable 1 x FDD cable 1 x I/O shield 1 x Driver CD   -   Operation Temperature - 0-60 Celsius degree   -   Size - ATX 293 x 180 mm
