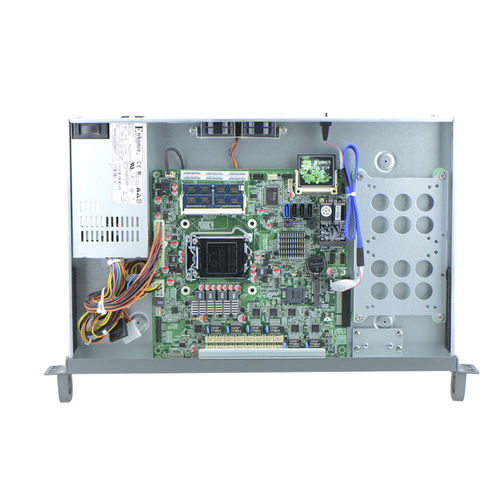

Network computer AM-FW1U-B75L6AB
serverVGAWiFi

network computer
network computer
network computer
network computer
network computer
Add to favorites
Compare this product


Characteristics

Type
server
Ports
VGA, WiFi, USB 2.0, 3G, SATA
Field
network
Other characteristics
wireless, ATX, 1U

Description

-- Included 1U Rackmount server chassis +Motherboard+Power --Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor --Using Intel® B75 Express Chipset --Support Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB --1* DB15 VGA port --Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet --Supporting Wake-on-LAN and PXE function --LAN1~4 supports 2 groups of BYPASS function --Providing 1* Mini-PCIE slot, support WIFI/3G module --Providing a 3.5/2.5inch SATA disk location --1* MSATA slot, support SSD 6Gbps --1* CF card slot --1* COM(CISCO Standard Interface) --2* USB 2.0 port --6* LAN port --1* VGA port (Rear panel) --ATX Power supply --1U chassis frame --Surface sandblasting oxidation process(Silver gray) --Dimension : 430mm(L)* 280mm(W)* 46.2mm(H) CPU - Support LGA1155 Intel Core™ i3/i5/i7 32nm/22nm Processor Chipset - Using Intel® B75 Express Chipset Memory - Support Dual-channel SO DDR3 1333/1066 memory slot, Max. up to 16GB Display port - 1* DB15 VGA port Network Function - Integrated 6* Intel 82574L 10/100/1000Mbps Ethernet Supporting Wake-on-LAN and PXE function LAN1~4 supports 2 groups of BYPASS function Wireless Network - Providing 1* Mini-PCIE slot, support WIFI/3G module Storage - Providing a 3.5/2.5inch SATA disk location 1* MSATA slot, support SSD 6Gbps 1* CF card slot Panel Port 1* COM(CISCO Standard Interface) 2* USB 2.0 port 6* LAN port 1* POWER Switch 1* POWER_LED, HDD_LED Indicator 1* VGA port (Rear panel)
