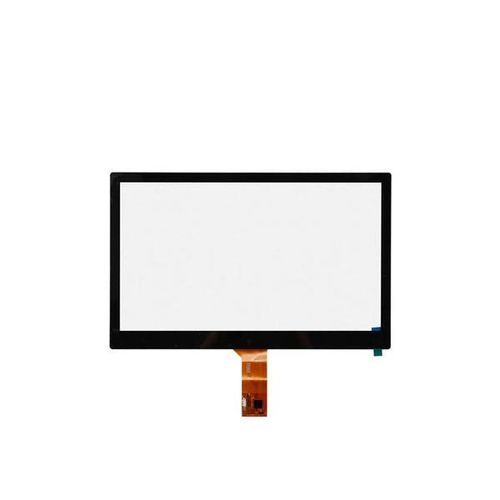

Capacitive touch screen WTY140B93A01

14"projected capacitive touchscreenmulti-touch

Overview
Customized 14-inch projected capacitive (PCAP) touch screen with G+G structure and USB interface. Model WTY140B93A01 delivers 10-point multi-touch performance, Full HD resolution and high transparency for clear visuals and precise touch input, designed for industrial and commercial integration.

Key Features

• Large touch area: 14-inch active area improves visibility and interaction for kiosks, POS, control panels and interactive displays.
• Projected capacitive (G+G): Glass-on-glass construction with reliable multi-touch sensing and consistent response under simultaneous inputs.
• 10-point multi-touch: Supports gestures, swipes and multi-finger operations for modern touch interfaces.
• USB interface: Standard plug-and-play connection for simple integration with PCs, embedded systems and HMI controllers.
• High transparency: ≥82% light transmission for bright, crisp imaging on high-resolution displays.
• Wide viewing angles: Maintains color and clarity across varied observer positions.
• Fast, accurate response: Low latency touch detection for smooth operator interaction.

Applications

• Interactive kiosks, digital signage, self-service terminals, POS systems and commercial displays.
• Industrial control panels, HMI units and factory automation equipment requiring reliable touch input.
• Medical devices and diagnostic equipment where precise touch control is necessary.
• In-vehicle infotainment, navigation displays and consumer electronics integrations.

Technical Parameters

• Model: WTY140B93A01
• Size: 14 inch
• Interface: USB
• Structure: G+G (Glass+Glass)
• Resolution: 1920×1080
• Hardness: 6H
• Transparency: ≥82%
• Aspect ratio: 16:9
• Working voltage: 3.3–5V
• Touch points: 10 points (multi-touch)
• Viewing area (mm): 311.30×176.25
• Outline dimension (mm): 334.80×210.00
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Supported OS: Windows, Android, Linux
• Application fields: Industrial control, home automation, medical device, self-service terminal
