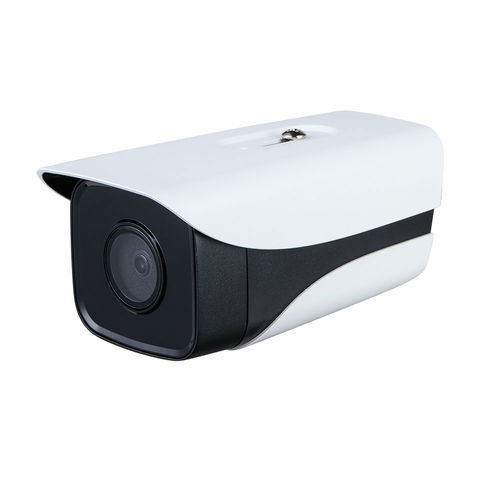

Digital camera IPC-HFW2231M-AS-I2-B-S2

machine visionmonitoringdetection

2MP Lite IR Fixed-focal Bullet Network Camera IPC-HFW2231M-AS-I2-B-S2 > Intelligent detection: Intrusion, tripwire > 2MP, 1/2.8" CMOS image sensor, low illuminance, high image definition > Outputs max. 2MP (1920 × 1080) @25/30 fps > H.265 codec, high compression rate, ultra-low bit rate > Built-in LEDs, max. illumination distance: 50 m > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes > Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection > Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card > 12V DC/PoE power supply; 12V DC power output, max. current 165mA > IP67 protection Camera Image Sensor 1/2.8”2Megapixel progressive CMOS Max. Resolution 1920 (H) × 1080 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination [email protected] S/N Ratio >56 dB Illumination Distance 3.6 mm: 30 m (98.4 ft) 6 mm: 50 m (164 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 2 (IR LED) Lens Lens Type Fixed-focal Mount Type M12 Focal Length 3.6 mm; 6 mm Max. Aperture 3.6 mm: F1.6 6 mm: F1.6 Field of View 3.6 mm: Horizontal 87° × Vertical 46° × Diagonal 104° 6 mm: Horizontal 54° × Vertical 28° × Diagonal 63° Iris Type Fixed Close Focus Distance 3.6 mm: 1.2m (3.9ft) 6 mm: 2.5m (8.2ft)
