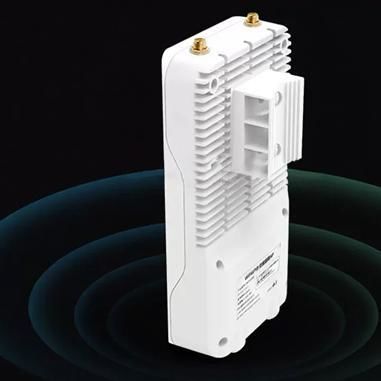

IP access point WL-AP600

gigabit Ethernetdual-band2.4 GHz

Overview
The WL-AP600 is an outdoor dual-band access point based on the 802.11ax (Wi‑Fi 6) standard. It provides combined wireless throughput up to 3047.5 Mbps (573.5 Mbps on 2.4 GHz and 2474 Mbps on 5 GHz in 802.11ax mode) and supports up to 128 concurrent users. The unit is housed in an IP65 weatherproof enclosure and features external RP-SMA antenna connectors for use with omnidirectional or directional antennas, suitable for plazas, parks, campuses and industrial outdoor areas.

Key features

• Industrial-grade protection: EMI resistance and surge protection (common mode 6 kV, differential 1.5 kV).
• Wi‑Fi 6 (802.11ax) dual‑band 2x2 operation, combined up to 3047.5 Mbps.
• Dedicated external Wi‑Fi 6 RF chips for extended coverage and throughput.
• Wire-speed hardware forwarding (HNAT) with wired throughput up to 2 Gbps.
• Advanced PHY/MAC features: MU‑MIMO, OFDMA, BSS Coloring, OBSS-PD, 1024‑QAM, beamforming.
• Flexible deployment: standalone (Fat) or centrally managed (Fit/AC controller/Cloud).
• 48V 802.3af/at PoE input for simplified outdoor power delivery.

Hardware specifications

• Model: WL-AP600
• Main chipset: IPQ5018 + QCN6102 + YT8521SC-C A; Dual-core ARM Cortex‑A53 1.0 GHz
• RAM: 256 MB; Flash: 128 MB
• Concurrent users: up to 128

Wireless technology

• 2.4 GHz: 2x2 802.11b/g/n/ax (theoretical up to 573.5 Mbps)
• 5 GHz: 2x2 802.11a/n/ac/ax (theoretical up to 2474 Mbps)
• Supports OFDMA, MU‑OFDMA (up to 4 uplink / 8 downlink), MU‑MIMO, STBC, LDPC, beamforming
• Spatial reuse features: BSS Coloring, OBSS‑PD, SRG/SRP
• Power-saving: single-antenna standby, dynamic MIMO power saving, E‑APSD, per-packet power control

Interfaces & mechanical

• 1 × 10/100/1000 Mbps WAN (PoE In)
• 1 × 10/100/1000 Mbps LAN
• 1 × Reset button (inside WAN housing; press >6 s to factory reset)
• LEDs: Status, WAN, LAN
• Antennas: 2 × RP‑SMA‑K external connectors (antenna length 155 mm)
• Power: 48V 802.3af/at PoE input
• Operating temperature: -40 °C to 55 °C; Storage: -50 °C to 70 °C
• Humidity: Operating 10%–90% (non‑condensing); Storage 5%–90% (non‑condensing)
• Dimensions (excl. antennas): 184.97 × 101.00 × 41.00 mm

Wireless specifications (detailed)
Frequency ranges: 2.4 GHz (2.4–2.4835 GHz) and 5 GHz (UNII‑1/2/3 bands 5.15–5.825 GHz). Channels: 2.4G channels 1–13; 5G channels 36/40/44/48/52/60/64/149/153/157/161/165. Supported PHY modes: 802.11b/g/n/ax (2.4G), 802.11a/n/ac/ax (5G). Speeds examples: 11ax 2.4 GHz up to 573.5 Mbps; 11ax 5 GHz up to 2474 Mbps. Reception sensitivity and transmit power are provided in manufacturer detailed tables.

Software & management

• Operating modes: AC controller mode, Mesh AP, Standalone AP, Thin/Fit AP
• Management: web GUI (English/Chinese) and remote cloud platform management
• Wireless settings: SSID/encryption, VLAN binding, max client limits, radio on/off, SSID hiding
• Access control: blacklist/whitelist, roaming thresholds and sensitivity, IPv6, NTP, diagnostics, firmware upgrade and logs

Package & dimensions
Mechanical drawings and package kit contents are provided by the manufacturer and shown on the product page.
