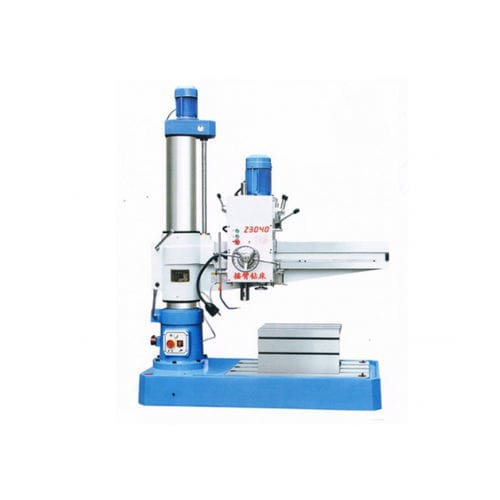

Vertical drilling machine Z3040-13Aradialmulti-spindle
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, radial
- Number of spindles
- multi-spindle
- Drilling diameter
35 mm, 40 mm
(1.38 in, 1.57 in)- Power
1,100 W, 2,200 W
- Rotational speed
Min.: 34 rpm
(213.6 rad.min-1)Max.: 1,280 rpm
(8,042.5 rad.min-1)- Weight
1,400 kg
(3,086 lb)
Description
Spindle nose to table distance - 430-1210
Spindle center to column bus distance - 300-1100
Spindle stroke - 220
Spindle taper (Morse) - 4
Spindle speeds - 12
Spindle feed rate range - 0.10. 0.16. 0.25
Spindle feed rate series 3
Arm rotation angle - ±180
Machine dimensions (LxWxH) - 1830x 780x2350
