Spraying machine

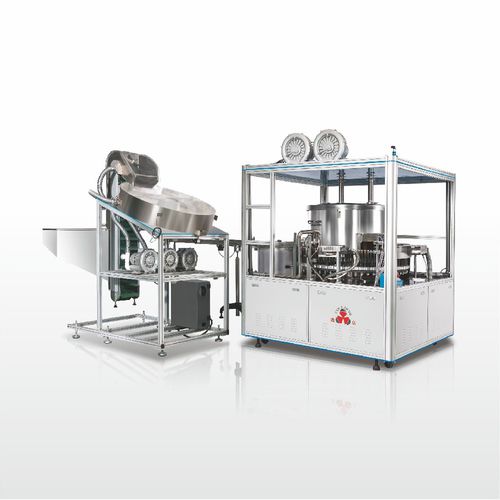

1. Electrostatic Spraying Machine for Round Objects
Product Overview
This electrostatic spraying machine is specifically designed for the efficient, high-quality coating of various round objects, including ABS, PP, and PET wine bottle caps, glassware, lotion bottles, and perfume bottles. Utilizing a highly efficient electrostatic spraying system, it significantly reduces paint consumption and energy use while ensuring an even, durable finish. It is configurable for both single-color and multi-color applications based on production requirements.
Technical Specifications

• Line Speed: 2 - 6 m/min
• Compressed Air: 0.6 - 0.8 MPa
• Machine Dimensions (L×W×H): 1700 × 1700 × 1700 mm
• Power Supply: 380V, 3-Phase

Core Features & Advantages

• High-Efficiency Electrostatic System: Maximizes paint transfer efficiency, dramatically reducing material waste and overspray.
• Excellent Finish Quality: Ensures a uniform, high-adhesion coating on complex round surfaces.
• Flexible Configuration: Can be set up for single-color or sequential multi-color spraying to meet diverse order specifications.
• Energy & Cost Saving: The electrostatic process lowers overall paint and energy consumption, improving operational economy.
• Wide Material Compatibility: Effectively coats various plastics (ABS, PP, PET) and glass.

2. Airless Spraying Machine with Drying Oven
Product Overview
This complete airless spraying system is engineered for coating round, oval, and square plastic or glass bottles and containers. It integrates an imported high-precision spray gun with a comprehensive drying solution, including a preheating oven and a post-process chain-type curing oven. Optional LPG or electric drying ovens provide flexibility for different production environments, delivering a robust, finished coat in a continuous workflow.
Technical Specifications

• Line Speed: 10 - 20 m/min
• Compressed Air: 0.6 - 0.8 MPa
• Machine Dimensions (L×W×H): 10000 × 5000 × 1400 mm
• Power Supply: 380V, 3-Phase
• Rated Power: 40 kW

Core Features & Advantages

• Complete Coating Line: Integrates preheating, precision spraying, and curing into one automated system for streamlined production.
• Versatile Shape Handling: Capable of coating a wide range of geometries, from round and oval to square containers.
• High-Quality Application: Uses an imported airless spray gun for a consistent, high-pressure finish without air-induced imperfections.
• Flexible Drying Options: Features a standard chain-type oven with the choice of LPG or electric heating to suit facility infrastructure and energy preferences.
• Designed for High Throughput: The system supports fast line speeds for large-volume production runs.
