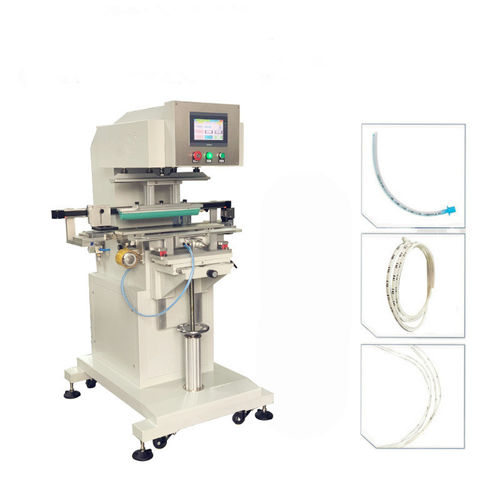

Pad printing machine with open ink cup automaticsemi-automaticmanual
Add to favorites
Compare this product
Characteristics
- Type
- with open ink cup
- Control
- automatic, semi-automatic, manual, fully-automatic
- Number of colors
- monochrome, 2-color, 4-color, 5-color, 3-color, 6-color, 7-color, 8-color
- Domain
- for the electronics industry, for the cosmetics industry, for the toy industry, for the pharmaceutical industry, for the printing industry, for the beverage industry, for the packaging industry, automatic, for caps, electrical switch, for medical applications, for ceramics, for electrical applications, for satellite dishes, fast, for plastics, for vials, for industrial applications
- Other characteristics
- with touchscreen, compact, high-accuracy, programmable, for caps, energy-efficient, low-noise, high-quality, high-speed, flexible, with electronic control, electromechanical, for cylindrical products, modular, high-resolution, shuttle table, universal, low-maintenance, high-performance
- Printing speed
Min.: 800 p/h
Max.: 2,000 p/h
Description
Automatic pad printing machine high quality 1-8 colors tampon printing factory price
Machine Main Parameters:
Item - Parameter
Ink cup diameter - 100 mm
Steel plate size - 125 × 800 mm
Worktable size - 150 × 850 mm
Max. printing speed - 700 pcs/hr
Installation method - Foundation-free installation
Power supply - 110/220 V, 60/50 Hz, 50 W
Air source - 5–7 bar (0.5–0.7 MPa)
Machine dimensions - ≈1100 × 1060 × 1480 mm
Machine weight - ≈360 kg
Operating Principles:
Single-color horizontal ink cup pad printing machine with simple operation.
Capable of printing long and wide patterns; equipped with microcomputer control and a touch-sensitive operation panel.
Supports cost-effective, eco-friendly printing plates (thin steel sheets).
Zero-plate adjustment (quick pattern change).
Adjustable pad printing depth and speed.
Delayed printing function for printing on frosted surfaces.
Emergency power switch (optional).
Servo motor-driven pad movement (front and rear), with adjustable stroke speed.
Supports flat printing and roller printing (optional).
