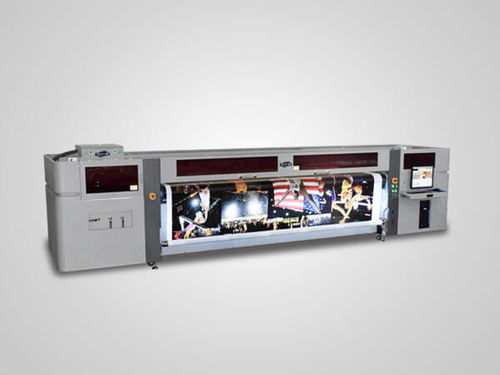

Hybrid large format printer YD-H3200KJ

UV inkjet4-color5-color

A)Main Feature: 1.Ricoh Gen5,Ricoh Gen6,KYOCERA heads optional; 2.Automatic rectify deviation system ensure the printing precision and extend the lifetime of the mesh belt; 3.Print for flat and roll materials with multifunction and cost saving; 4.Automatic height measurement,the cartridge automatically reach the best printing position,which is convenient and fast; 5.Secondary cartridge double negative pressure function,white ink and color ink are pressed separately to make the printing process more stable with more outstanding effect. B)Specification .Model：YD-H3200 .Print Head：Ricoh-G5/G6/Kyocera print head(Optional) .Number of heads：2-12pcs(4-8 colors optional) .Print resolution：600×2400dp .Print width：3200mm(11ft) .Material type：Rigid and flexible material,flat and roll to roll material .Material thickness：Up to 50mm(2in) .Printing speed：30 M²/h with white,90M²/h without white for 3 rows CMYK .Ink type：Eco-friendly UV curing ink (NO VOC) .Ink color：CMYK,Lc,Lm,W,V(Optional) .RIP software：Onyx,PhotoPrint .Input format：Adobe Postscript Level 3,PDF,JPEG,TIFF,EPS,Al .Printer weight：2150KG .Printer size：5800mm[L]×1580mm[W]×1530mm[H](19ft×5.2ft×5ft) .Package size：6000mm[L]×1850mm[W]×1930mm[H](19.7ft×6ft×6.3ft) .Power requirement：220V/AC(±10%),50/60 Hz;8.5 KW(38A) .Working enyironment：Separate,litle sunlight,ventilated .workshop.Temperature:18°C~30℃ (64°F～86°F)Humidity:30%～70%(Non-condensing)Ventilation equipment:Suggest Overhead exhaust fan,displacement 600 cfm Yotta hot High Speed Advertising Banner Carpet Billboard Printing Machine Selling large format 1.8m uv digital flatbed hybrid printer roll to roll UV digital inkjet printer factory price Metal Wood
