LCD display module YX40018A

TFTcolor320 x 320

Overview

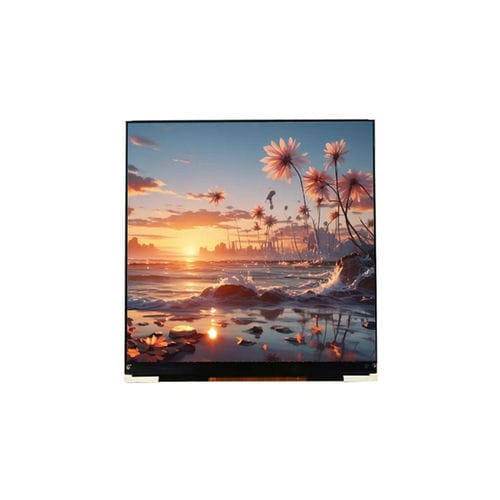

The YX40018A is a 3.92-inch square TFT LCD display module with 320×320 RGB resolution. It supports selectable MCU 8080 or 4-wire SPI interface via IM0–IM2, enabling flexible integration in embedded platforms. Driven by the ST7796U IC and equipped with a 10‑LED white backlight, the module delivers stable image performance, All O'Clock viewing direction and a compact outline suited to industrial control, medical devices, POS terminals, handheld instruments and embedded HMI.

Basic specifications

• Model: YX40018A
• Display size: 3.92 inch (square)
• LCD type: TFT, transmissive
• Resolution: 320 (RGB) × 320
• Active area: 71.14 × 69.82 mm
• Outline dimensions: 75.66 × 78.23 × 2.24 mm
• Pixel pitch: 0.222 × 0.222 mm
• Driver IC: ST7796U
• Interface: MCU 8080 / 4-wire SPI (selectable via IM0–IM2)
• Backlight: 10 white LEDs
• Analog operating voltage: 2.8 V (typ.)
• Contrast ratio: 800 : 1
• Brightness: 300 cd/m²
• Color gamut: 60%
• Luminance uniformity: 80%
• Response time: 25 ms

Optical characteristics

• Resolution: 320 × 320 (RGB)
• Contrast ratio (typ.): 800 : 1
• Brightness (typ.): 300 cd/m²
• Color gamut: 60%
• Viewing angle (CR ≥ 10): All O'Clock / 80° / 80° / 80° / 80°
• Response time: 25 ms

Electrical & mechanical

• Outline: 75.66 × 78.23 × 2.24 mm
• Active area: 71.14 × 69.82 mm
• Pixel pitch: 0.222 × 0.222 mm
• Backlight: 10 white LEDs
• Analog operating voltage: 2.8 V (typ.)

Operating conditions

• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +70°C
• Humidity: ≤90% RH (60°C)

Integration notes & applications

• Interface selectable via IM0–IM2: MCU 8080 or 4-wire SPI for flexible host connectivity
• All O'Clock viewing direction simplifies mounting for wide-angle visibility
• Compact outline and low profile for embedded HMI, control panels and handheld devices
• Recommended for industrial control, medical displays, POS terminals and smart devices
