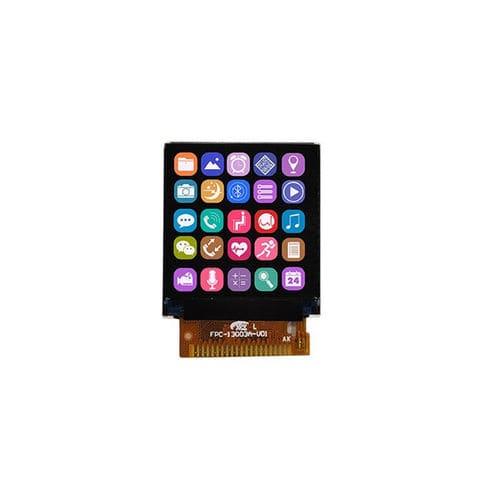

TFT LCD display module YX13003A

color240 x 2401.3"

Product Overview
The Yousee YX13003A is a 1.3-inch square TFT-LCD display module with 240×240 RGB resolution and an 8080 8-bit parallel MCU interface. Driven by the ST7789V IC, the module provides stable image performance, vivid colors and an All O'Clock wide viewing angle for compact industrial and embedded applications.

Key Features

• 1.3-inch square TFT-LCD, 240×240 (RGB)
• Driver IC: ST7789V
• Interface: 8080 8-bit parallel MCU
• Viewing direction: All O'Clock (wide viewing)
• Backlight: 2 × white LEDs
• Compact outline dimensions

Technical Specifications
Display size: 1.3 inch
LCD type: a-Si TFT-LCD, transmissive
Resolution: 240 (RGB) × 240
Active area: 23.4 × 23.4 mm
Outline dimensions: 26.2 × 29.22 × 1.94 mm
Pixel pitch: 0.0975 × 0.0975 mm
Driver IC: ST7789V
Interface: 8080 8-bit parallel MCU
Backlight: 2 × white LED
LCM input voltage: 2.8 ±0.1 V
Typical brightness: 300 cd/m²
Typical contrast ratio: 600:1
Color gamut (typical): 50%
Luminance uniformity: 80%
Response time (typical): 17.5 ms

Optical Characteristics
Resolution: 240 × 240
Contrast ratio (typical): 600:1
Color gamut (typical): 50%
Brightness (typical): 300 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 80° / 80° / 80° / 80°
Response time (typical): 17.5 ms

Operating Conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤90% RH (60°C)

Applications
Designed for compact, space-constrained products requiring clear graphics and reliable display performance, including wearables, handheld instruments, smart home devices, industrial controllers, IoT devices, smart meters, healthcare equipment and embedded control systems.

Model Details

• Model: YX13003A
• Display size: 1.3 inch
• Panel type: a-Si TFT-LCD, transmissive
• Resolution: 240×240 (RGB)
• Interface: 8080 8-bit parallel MCU
• Driver IC: ST7789V
• Backlight: 2 × white LED
• Operating temperature: -20°C to +70°C
