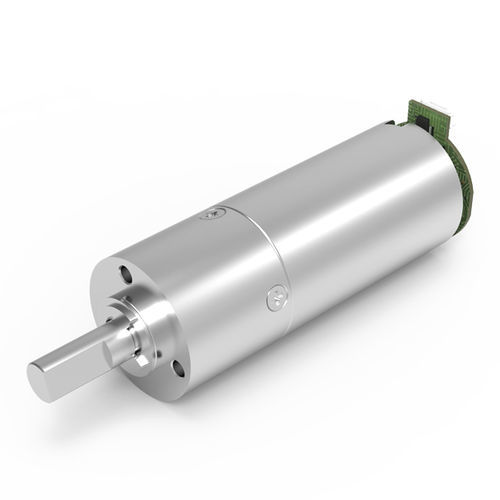

Brushless DC gear-motor ZWBMD022022 seriesplanetarycoaxial1 - 5 Nm
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 1 - 5 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 0 - 0.1 Nm
- Performance
- high-torque, low-noise, high-precision
- Product applications
- industrial
- Other characteristics
- compact, two-stage, three-stage, single-stage, four-stage, micro, low-speed, coreless
- Gear ratio
Min.: 4 unit
Max.: 1,296 unit
- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 100 °C
(212 °F)
Description
Voltage : 3-24V
Rated Speed : 6-1875 rpm
Rated Torque Max. (gf.cm) : 8000-15000 gf.cm
Rated Torque Max. (mNm) : 784.53-1470.99 mNm
Reduction Ratio : 4-1296
Overall Length : 57.5-79.4mm
