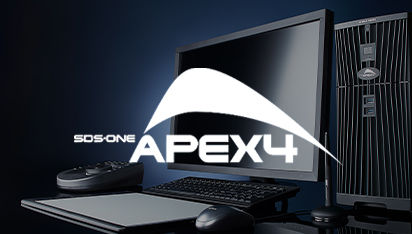

Simulation software package SDS®-ONE APEX4

CADvisualizationprogramming

Overview
The SDS®-ONE APEX4 is an All-in-One 3D design system for textile product development. It integrates knitting-machine programming, pattern CAD and textile design tools with high-definition simulation to support flat knitting, circular knitting, printing and weaving workflows.

Development
Originating from the SDS-1000 (1981) and evolving into the SDS®-ONE APEX platform in 2007, the APEX4 continues SHIMA SEIKI's iterative improvements to accelerate digital product development and connect design to production.

Highly accurate simulation

• Visual output closely matches real materials
• Scan and simulate real yarn data for realistic rendering
• Reduce the need for physical samples
• Shorten product development lead times
• Improve planning and e-commerce presentation

Full-featured functions

• Specialized tools for efficient design and production workflows
• Auto-suggest generates colorways and design variations automatically
• Pattern-making suitable for knitted apparel and industrial designs
• Accurate knitting programming from shaping to WHOLEGARMENT®
• Guided operations to support both new and experienced users

At the core of the supply chain

• End-to-end support from planning and design to production and sales promotion
• Enables digital links between yarn spinners, brands and manufacturers to reduce waste and increase profitability

Virtual Sampling
The APEX4 enables rapid evaluation with high-definition virtual samples, allowing faster prototyping and decision-making without producing physical samples.

Programming
Packaged software incorporates SHIMA SEIKI know-how to simplify programming of complex patterns, including WHOLEGARMENT®; visual menus and diagrams clarify knitting methods and speed up setup.

Product Information
Catalogues and official technical documentation for the SDS®-ONE APEX series, including relevant compliance files (e.g., ErP documentation), are available in the product materials.

Big Tree concept
APEX4 acts as a core platform linking planning, production and sales stages to form an integrated cycle that supports efficient manufacturing of textile products.

Technical characteristics / specifications

• Product type: All-in-One 3D textile design system (software)
• Main functions: knitting-machine programming, pattern CAD, textile design and simulation (flat, circular, printing, weaving)
• Simulation: high-definition virtual sampling and yarn scanning/simulation
• Support: WHOLEGARMENT® programming and complex knit patterns
• Supply-chain features: integrated planning-to-production-to-sales connectivity
• History: from SDS-1000 (1981) to SDS®-ONE APEX (2007) and subsequent APEX series
• Compliance: ErP technical documentation available where applicable
