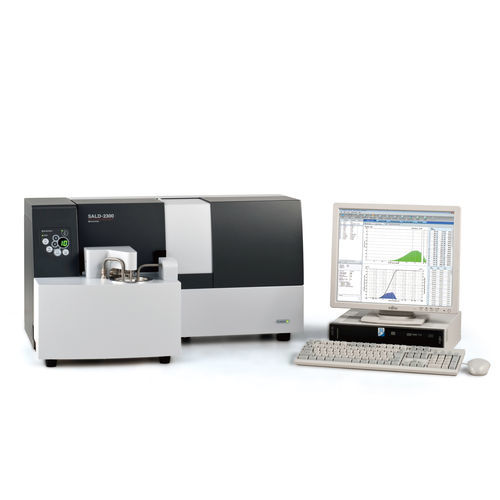

Particle analyzer SALD-2300

monitoringconcentrationdispersion

Overview
The SALD-2300 is a laser diffraction particle size analyzer designed for broad industrial and research applications. It preserves data continuity with SALD2000/2100/2200 models and adds functions for evaluating changes in particle size distribution with respect to concentration and time, enabling studies of dispersion, aggregation and dissolution.

Features

• Wide applicability: With the SALD-MS23 sampler the wet measurement range is 17 nm to 2500 μm, allowing analysis from PSL 50 nm up to 2 mm stainless balls with a single instrument.
• High sensitivity / high concentration: Supports particle concentration measurements from 0.1 ppm to 20% (wet), enabling evaluation of distribution changes across concentration ranges.
• Time-resolved measurement: Capable of series measurements of up to 200 data points at minimum 1 second intervals for monitoring temporal changes.
• Data management: Compatible with LabSolutions SALD and LabSolutions network system to support data integrity and regulatory (ER/ES) requirements.
• Multiple cells & conversion options: Supports high-concentration cell, flow cell, batch cell, cyclone injection dry unit (SALD-DS5) and conversion between wet and dry systems.

Videos (titles on page)

• SALD-2300 High-Concentration Cell Unit
• SALD-2300 Converting Wet system to Dry system
• SALD-2300 Batch Cell Unit
• SALD-2300 Cyclone Injection Type Dry Measurement Unit (SALD-DS5)
• SALD-2300 Flow Cell Unit
• SALD-2300 Laser Diffraction Particle Size Analyzer

Downloads (listed on page)

• Solutions for CASE and Weight Reduction Development of Automobiles [PDF]
• SALD-2300 - Laser Diffraction Particle Size Analyzer [PDF]
• Instruments for Evaluations Rubber and Plastics [PDF]
• Particle Size Analyzers [PDF]

Applications (documents)
Evaluation of Particle Properties of Lithium-Ion Battery Anode Materials — Particle Size Distributions and Shapes — | 2024-04-16
Particle Size Evaluation in Hair Conditioner — Undiluted Measurement of Highly Concentrated Emulsions — | 2022-03-01
Characterisation of Casein Micelles and Fat Globules in Milk by Particle Size Laser Diffraction Method | 2020-02-25

Technical specifications

• Model: SALD-2300
• Measurement principle: Laser diffraction particle size analysis
• Wet measurement range (with SALD-MS23 sampler): 17 nm to 2500 μm
• Particle concentration measurement range (wet): 0.1 ppm to 20%
• Time resolution: Series measurements up to 200 data points, minimum interval 1 second
• Measurement modes / optional units: high-concentration cell, flow cell unit, batch cell unit, cyclone injection type dry measurement unit (SALD-DS5), SALD-MS23 sampler
• Software / data management: Compatible with LabSolutions SALD; supports networked data management and ER/ES data integrity features
• Applications: PSL nanoparticles, large particles up to mm scale, emulsions, battery anode materials, food and cosmetic dispersions
