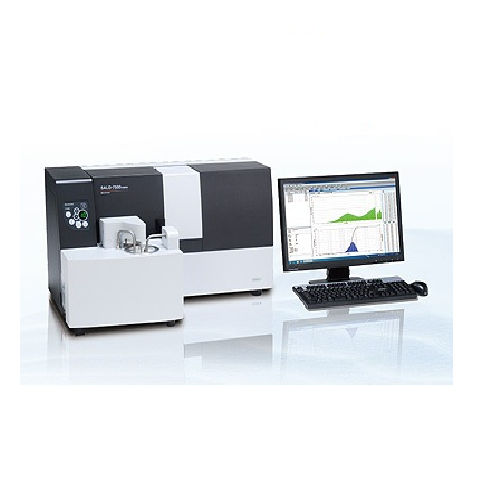

Static light scattering nanoparticle size analyzer SALD-7500nano

opticalfor nanotechnologyfor research

Overview
Delivering 10 times the sensitivity of previous models, this analyzer measures low-concentration or high-light-absorption nanoparticles with improved detection capability. It performs continuous measurements of particle size and size distribution at one-second intervals across a wide range from 7 nm to 800 μm. Options support high-concentration samples (up to 20 wt%) and trace-volume samples (down to 15 μL). Typical application areas include nanotechnology, life sciences, and fine-bubble analysis.

Key capabilities

• Approximately 10× higher sensitivity in the nano range compared with conventional instruments
• Continuous measurement of particle size and distribution at 1 s intervals
• Wide measurement range: 7 nm to 800 μm
• Capability to measure very low concentration samples (below 1 ppm)
• Options for high-concentration samples (up to 20 wt%)
• Trace-sample measurement option down to 15 μL

Highlighted features

• Wide measurement range (7 nm–800 μm) enabling continuous monitoring from primary particles to sub-visible contaminants using a single light source and optical system
• Single detection face continuously captures forward-scattered light up to 60° for seamless coverage of the target particle size range
• Automatic refractive index calculation function reduces manual input and potential user error

Downloads & application documents (titles only)

• Instruments for Evaluations Rubber and Plastics [PDF]
• SALD-7500nano - Nano Particle Size Analyzer [PDF]
• Particle Size Analyzers [PDF]
• Solutions for Cellulose Nanofibers [PDF] (Creation Date: 2019-07-15)
• Characterization of Fiber Length and Dispersibility of Cellulose Nanofibers - Powder Property Analysis [PDF] (Creation Date: 2019-06-18)
• Relationship Between Particle Size Distribution/Particle Shape and Optical Properties of Gold Nanoparticles - Spectrophotometric Analysis [PDF] (Creation Date: 2017-04-03)

Applications

• Nanotechnology research
• Life sciences and biological nanoparticle characterization
• Analysis of fine (microscopic) bubbles
• Evaluation of primary particles, sub-visible particles, and contaminants

Technical specifications

• Measurement range: 7 nm to 800 μm
• Time resolution: continuous measurement at 1 s intervals
• Sensitivity: approximately 10× improvement versus conventional instruments in the nano area
• Low concentration capability: can measure samples below 1 ppm
• High concentration option: up to 20 wt%
• Minimum trace sample volume (option): down to 15 μL
• Optical/detection: single light source, single optical system, single measurement principle; single detection face capturing forward-scattered light up to 60°
• Automatic refractive index calculation function to reduce user input/error
• Intended application areas: nanotechnology, life sciences, fine bubbles, materials analysis
