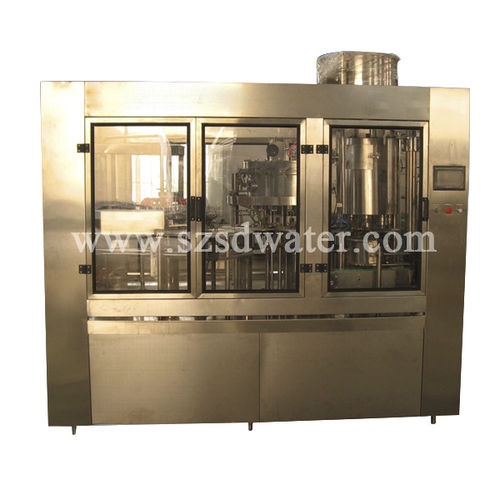

Automatic filling machine DGCF18-18-16
bottlebeveragefruit juice

automatic filling machine
automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Container type
bottle
Product applications
beverage, fruit juice
Domain
for the food industry
Type
volumetric, monobloc
Number of heads
multi-head
Throughput

Max.: 2,400 p/h

Min.: 2,000 p/h

Machine length

2,100 mm, 2,300 mm, 2,800 mm, 3,500 mm
(83 in, 91 in, 110 in, 138 in)

Machine width

1,600 mm, 1,700 mm, 1,900 mm, 2,500 mm
(63 in, 67 in, 75 in, 98 in)

Machine height

2,300 mm
(91 in)

Description

Best Mono-block 3-in-1 Filling Equipment for Soft Drinks Product Code:DGCF18-18-16 Product Description: 3-in-1 filling equipment Functions and Features: 1) Wash, rinse, fill and cap 3000 bottles per hour up to 20000 bottles per hour with infinite speed adjust. 2) High quality stainless steel pumps with totally enclosed fan cooled motors for the 3-in-1 filling equipment. 3) The 3-in-1 filling equipment has emergency stop and other safety features provide unparallel operator safety. 4) The 3-in-1 filling equipment include cap holding bin with rotational cap feeding system for 28/30mm flat caps. 5) Caps heads of magnetic type, PICK & PLACE system, cap sterilization system before the capping process. 6) Full stainless steel AISI 304 for the rinsing, filling capping unit, the pipe, fittings and other part in contact with product will be made of food grade stainless steel construction for years of trouble free service. 7) Automatically cap ordering for the 3-in-1 filling equipment, cap putting and capping, works accurately for this 3-in-1 filling equipment. 8) The 3-in-1 filling equipment with moveable door, easy operation and nice look 9) Power supply of 3-in-1 filling equipment: 3phase,380/220V, 50/60HZ
