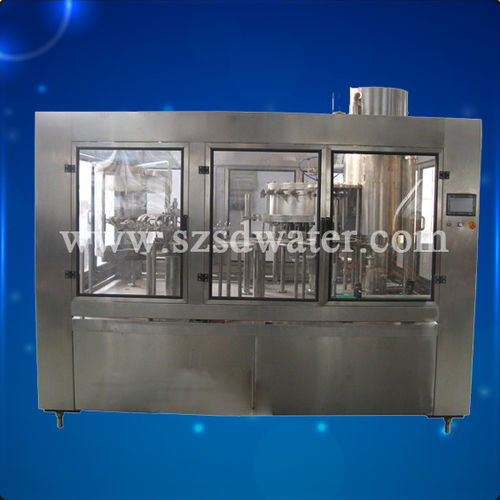

Automatic filling machine DGCF24-24-8
bottlebeveragefor the food industry

automatic filling machine
automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Container type
bottle
Product applications
beverage
Domain
for the food industry
Type
volumetric
Number of heads
multi-head
Other characteristics
high-speed
Throughput

Max.: 20,000 p/h

Min.: 3,000 p/h

Machine length

210 cm, 230 cm, 280 cm, 350 cm
(83 in, 91 in, 110 in, 138 in)

Machine width

160 cm, 170 cm, 190 cm, 250 cm
(63 in, 67 in, 75 in, 98 in)

Machine height

230 cm
(91 in)

Description

Easy Operation Automatic Bottling Equipment for Beverage Factory DGCF24-24-8 Product Description: automatic bottling equipment Functions and Features: 1) Wash, rinse, fill and cap 3000 bottles per hour up to 20000 bottles per hour with infinite speed adjust. 2) High quality stainless steel pumps with totally enclosed fan cooled motors for the automatic bottling equipment. 3) The automatic bottling equipment has emergency stop and other safety features provide unparallel operator safety. 4) The automatic bottling equipment include cap holding bin with rotational cap feeding system for 28/30mm flat caps. 5) Caps heads of magnetic type, PICK & PLACE system, cap sterilization system before the capping process. 6) Full stainless steel AISI 304 for the rinsing, filling capping unit, the pipe, fittings and other part in contact with product will be made of food grade stainless steel construction for years of trouble free service. 7) Automatically cap ordering for the automatic bottling equipment, cap putting and capping, works accurately for this automatic bottling equipment. 8) The automatic bottling equipment with moveable door, easy operation and nice look 9) Power supply of automatic bottling equipment: 3phase,380/220V, 50/60HZ
