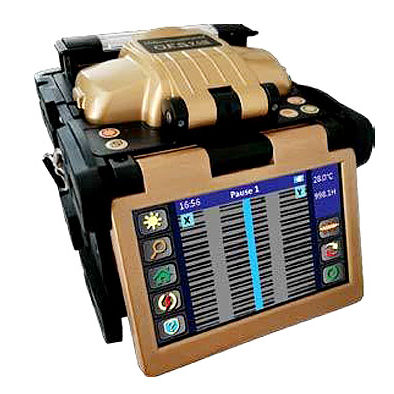

Fiber optic splicer OFS-95R

OFS-95R Optical Fusion Splicer OFS-95R Ribbon Fiber Fusion Splicer uses high-speed image processing technology and high-precision V-groove precision positioning technology, which can make the optical fiber fast automatic fusion, and has high-quality fusion effect. The 5-inch LCD and dual CMOS monitors are perfectly matched, and the X-axis and Y-axis can be displayed simultaneously or separately. OFS-95R is suitable for the construction, maintenance and repair of ribbon cables. It supports multimode fiber (MMF / G.651), single mode fiber (SMF / G.652), dispersion-shifted fiber (DSF / G.653) and non-zero Dispersion-shifted fiber (NZ-DSF / G.655), bend-insensitive fiber (BIF / G.657) and other fibers. Features ●Compact and light: 1.8Kg with battery ●SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF splicing ●Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation ●Auto and manual splicing ●Splicing≤15 second, heating≤25 second (time and power adjustable) ●Arc counter prompts electrode change upon usage ●Auto arc optimization ●Auto heating ●X/Y and X+Y display for clear fiber core image ●Quick mount battery with power indicator, housed in dust and water splash proof battery dock ●DC output to power external devices ●Built-in illumination ●Wind – dust – rain - shock proof ●Auto display flip ●Graphical user interface for easy understanding and operation ●Multi-language support
